CDM2B-32X50

Pneumatic cylinder

Working Medium	Air
Motion Pattern	Double action
Ensured Pressure Resistance	15.3kgf/cm2(1.5Mpa)
Max.pressure	10.2kgf/cm2(1.0Mpa)
Operating Speed Range	50~750mm/s
Margin of Stroke Error(mm)	+1.4 0mm

+ Sub-series

CDM2B-20X50

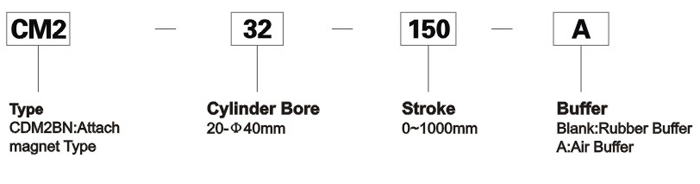

Ordering Code

Specification

Bore(mm)	20	25	32	40
Working Medium	Air
Motion Pattern	Double action
Ensured Pressure Resistance	15.3kgf/cm2(1.5Mpa)
Max.pressure	10.2kgf/cm2(1.0Mpa)
Min.pressure	0.5kgf/cm2(0.05Mpa)
Operating Temperature Range	-10~+70℃
Operating Speed Range	50~750mm/s
Buffering	Rubber buffer(Standard),Air buffer(Optional)
Margin of Stroke Error(mm)	+1.4 0mm
Port size	G1/8"	G1/8"	G1/8"	G1/4"

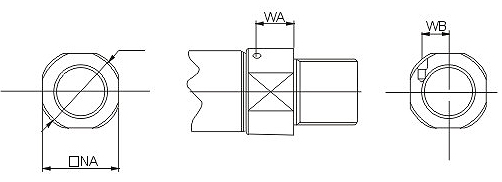

Overall Dimensions

Dimensions sheet

Diameter	Stroke range	A	AL	B1	B2	D	E	F	G	H	H1	H2	I	K	MM	N	NA	NN	P	S	ZZ	WA	WB
20	~300	18	15.5	13	26	8	20 0 -0.033	13	8	41	5	8	28	5	M8×1.25	15	24	M20×1.5	1/8	62	116	11.5	8.5
25	~300	22	19.5	17	32	10	26 0 -0.033	13	8	45	6	8	33.5	5.5	M10×1.25	15	30	M26×1.5	1/8	62	120	11.5	10
32	~300	22	19.5	17	32	12	26 0 -0.033	13	8	45	6	8	37.5	5.5	M10×1.25	15	34.5	M26×1.5	1/8	64	122	11.5	11.5
40	~300	24	21	22	41	14	32 0	16	11	50	6	10	46.5	7	M14×1.5	21.5	42.5	M32×2	1/4	88	154	14	15

Other Info

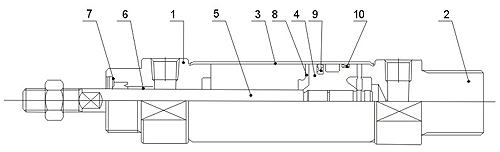

Structure

NO.	Designation
1	Front Cover
2	Back Cover
3	Barrel
4	Piston
5	Piston rod
6	Oiled Bearing
7	Front Cover Seal Ring
8	Anti-crash cushion
9	Piston Seal
10	Wear Ring
