Pneumatic cylinder

+ Sub-series

CDU-25X30

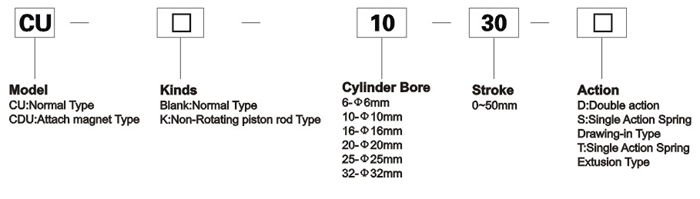

Ordering Code

Specification

Bore(mm)	6	10	16	20	25	32
Working Medium	Air
Motion Pattern	Double action/Single Action Extrusion type/Single Action Drawing-in Type
Ensured Pressure Resistance	1.0Mpa(10.5kgf/cm2)
Max. Working-pressure	0.7Mpa(7.1kgf/cm2)
Ambient and Medium Temperature	5~+60℃
Cushion	Both ends buffer
Margin of Stroke Error(mm)	+1.0 0
Precision of Piston rod with Non-rotating	±0.8°			±0.5°
Port Size	M5×0.8					G1/8"

Overall Dimensions

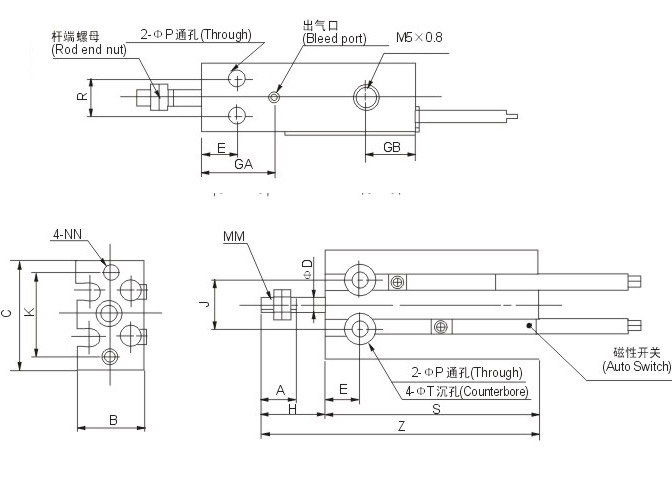

CU 6-10

CU 16-32

Dimensions sheet

size(mm)	A	A1	B	C	D	E	GA	GB	H	K	J	L	MM
6	7	-	13	22	3	7	15	10	13	17	10	-	M3×0.5
10	10	-	15	24	4	7	16.5	10	16	18	11	-	M4×0.7
16	11	12.5	20	32	6	7	16.5Note)	11.5	16	25	14	5	M5×0.8
20	12	14	26	40	8	9	19	12.5	19	30	16	6	M6×1.0
25	15.5	18	32	50	10	10	21.5	13	23	38	20	8	M8×1.25
32	19.5	22	40	62	12	11	23	12.5	27	48	24	10	M10×1.25

Bore size (mm)	NN	P	Q	QA	R	T	Without Auto Switch		With Auto Switch
Bore size (mm)	NN	P	Q	QA	R	T	S	Z	S	Z
6	M3×0.5(depth) 5	3.2	-	-	7	6 (depth) 4.8	33	46	33	46
10	M3×0.5(depth) 5	3.2	-	-	9	6 (depth) 5	36	52	36	52
16	M4×0.7 深(depth) 6	4.5	4	2	12	7.6 (depth) 6.5	30	46	40	56
20	M5×0.8(depth) 8	5.5	9	4.5	16	9.3 (depth) 8	36	55	46	65
25	M5×0.8(depth) 8	5.5	9	4.5	20	9.3 (depth) 9	40	63	50	73
32	M6×1.0(depth) 9	6.6	13.5	4.5	24	11 (depth) 11.5	42	69	52	79

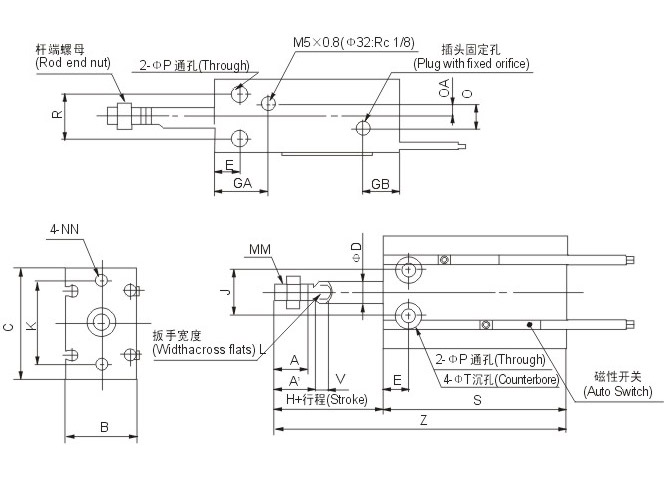

Single Acting,Spring Extend

-----

-------

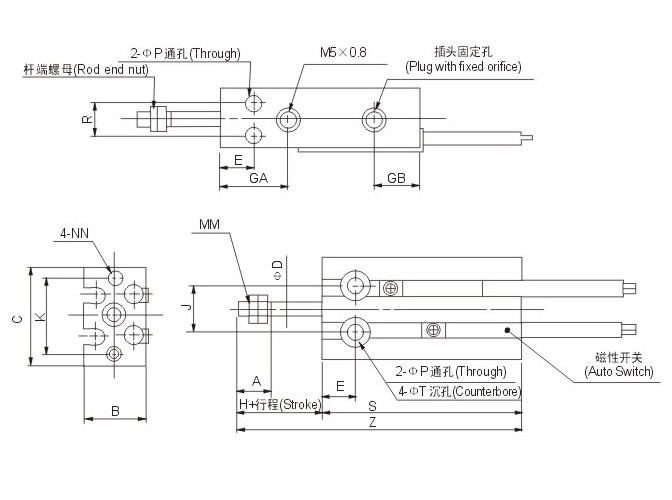

Single Acting,Spring Return

--------

Dimensions sheet-single

Bore size(mm)	A	A1	B	C	D	E	GA	GB	H	K	J	L	MM	NN	P
6	7	-	13	22	3	7	15	10	13	17	10	-	M3×0.5	M3×0.5(depth) 5	3.2
10	10	-	15	24	4	7	16.5	10	16	18	11	-	M4×0.7	M3×0.5(depth) 5	3.2
16	11	12.5	20	32	6	7	16.5	11.5	16	25	14	5	M5×0.8	M4×0.7(depth) 6	4.5
20	12	14	26	40	8	9	19	12.5	19	30	16	6	M6×1.0	M5×0.8(depth) 8	5.5
25	15.5	18	32	50	10	10	21.5	13	23	38	20	8	M8×1.25	M5×0.8(depth) 8	5.5
32	19.5	22	40	62	12	11	23	12.5	27	48	24	10	M10×1.25	M6×1.0(depth) 9	6.6

Bore size (mm)	Q	QA	R	T	V(Note)	Without Auto Switch						With Auto Switch
						S			Z			S			Z
						5st	10st	15st	5st	10st	15st	5st	10st	15st	5st	10st	15st
6	-	-	7	6(depth) 4.8	-	38	43	48	56	66	76	38	43	48	56	66	76
10	-	-	9	6(depth) 5	-	41	46	56	62	72	87	41	46	56	62	72	87
16	4	2	12	7.6(depth) 6.5	3.5	45	50	60	66	76	91	45	50	60	66	76	91
20	9	4.5	16	9.3(depth) 8	5	41	46	56	65	75	90	51	56	66	75	85	100
25	9	4.5	20	9.3(depth) 9	5	45	50	60	73	83	98	55	60	70	83	93	108
32	13.5	4.5	24	11(depth) 11.5	5	47	52	62	79	89	104	57	62	72	89	99	114
