CJ2B-6X25

Pneumatic cylinder

Working Medium	Air
Ensured Pressure Resistance	1.05Mpa(10.5kgf/cm2)
Max.pressure	0.7Mpa(7.1kgf/cm2)
Operating Speed Range	50~750mm/s
Margin of Stroke Error(mm)	+1.0 0 mm
Port size	M5×0.8

+ Sub-series

CJ2B-16X50

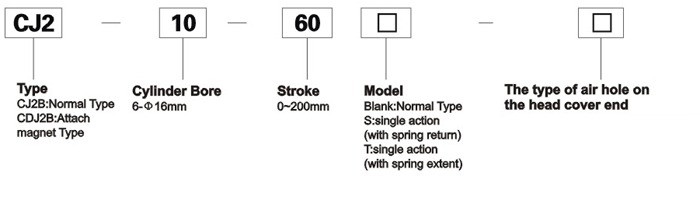

Ordering Code

Specification

Bore(mm)	6	10	16
Working Medium	Air
Motion Pattern	Double action/Single Action Extrusion type/Single Action Drawing-in Type
Ensured Pressure Resistance	1.05Mpa(10.5kgf/cm2)
Max.pressure	0.7Mpa(7.1kgf/cm2)
Min.pressure	0.25Mpa(2.5kgf/cm2)	0.15Mpa(1.5kgf/cm2)
Operating Temperature Range	-10~+70℃
Operating Speed Range	50~750mm/s
Buffering	Both side Rubber buffer(Standard)
Margin of Stroke Error(mm)	+1.0 0 mm
Port size	M5×0.8

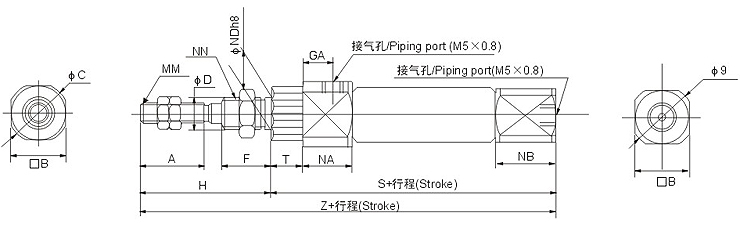

Overall Dimensions

CJ2B6

Dimensions sheet

Bore(mm)	A	B	C	D	F	GA	GB	H	MM	NA	NB	NDh8	NN	S	T	Z
6	15	12	14	3	8	14.5	-	28	M3×0.5	16	7	6	M6×1.0	49	3	77
10	15	12	14	4	8	8	5	28	M4×0.7	12.5	9.5	8	M8×1.0	46	-	74
16	15	18	20	5	8	8	5	28	M5×0.8	12.5	9.5	10	M10×1.0	47	-	75
