CQ2B-32X30-M

Pneumatic cylinder

Working Medium	Air
Ensured Pressure Resistance	15.3kgf/cm2(1.5Mpa)
Max.pressure	10.2kgf/cm2(1.0Mpa)
Environment and fluid temp	5~+60℃
Buffering	无/NO
Margin of Stroke Error(mm)	+1.0

+ Sub-series

Ordering Code

Specification

Bore(mm)	12	16	20	25	32	40	50	63	80	100
Working Medium	Air
Motion Pattern	Double action/Single Action Extrusion type/Single Action Drawing-in Type
Ensured Pressure Resistance	15.3kgf/cm2(1.5Mpa)
Max.pressure	10.2kgf/cm2(1.0Mpa)
Environment and fluid temp	5~+60℃
Thread Type	Inner Thread(Standard)/Outer Thread(Optional)
Buffering	无/NO
Margin of Stroke Error(mm)	+1.0
Installation	Through Hole (Standard)，Inner size on the two sides(Optional)
Port size	M5×0.8				G1/8"		G1/4"		G3/8"

Overall Dimensions

CQ2B 12-25

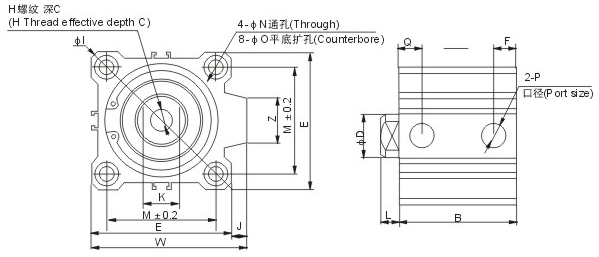

CQ2B 32-100

Long Stroke

Model	Stroke(mm)	B	F	P	Q
32	75,100	33	7.5	1/8	10.5
40	75,100	39.5	8	1/8	11
50	75,100	40.5	10.5	1/4	10.5
63	75,100	46	10.5	1/4	15
80	75,100	53.5	12.5	3/8	16
100	75,100	63	13	3/8	23

Dimensions sheet-CQ2B(Double Action)

Model	Stroke range (mm)	B	ΦD	E	F	H	C	ΦI	J	K	L	M	ΦN	ΦO	P	Q	W	Z
CQ2B12-□D	5~30	17+st	6	25	5	M3×0.5	6	32	-	5	3.5	15.5	3.5	6.5/depth 3.5	M5×0.8	7.5	-	-
CQ2B16-□D	5~30	18.5+st	8	29	5.5	M4×0.7	8	38	-	6	3.5	20	3.5	6.5/depth 3.5	M5×0.8	8	-	10
CQ2B20-□D	5~50	19.5+st	10	36	5.5	M5×0.8	7	47	-	8	4.5	25.5	5.5	9/depth 7	M5×0.8	9	-	10
CQ2B25-□D	5~50	22.5+st	12	40	5.5	M6×1.0	12	52	-	10	5	28	5.5	9/depth 7	M5×0.8	11	-	10
CQ2B32-□D	5	23+st	16	45	5.5	M8×1.25	13	60	4.5	14	7	34	5.5	9/depth 7	M5×0.8	11.5	49.5	18
CQ2B32-□D	10~50	23+st	16	45	7.5	M8×1.25	13	60	4.5	14	7	34	5.5	9/depth 7	1/8	11.5	49.5	18
CQ2B40-□D	5~50	29.5+st	16	52	8	M8×1.25	13	69	5	14	7	40	5.5	9/depth 7	1/8	11	57	18
CQ2B50-□D	10~50	30.5+st	20	64	10.5	M10×1.5	15	86	7	17	8	50	6.6	11/depth 8	1/4	10.5	71	22
CQ2B63-□D	10~50	36+st	20	77	10.5	M10×1.5	15	103	7	17	8	60	9	14/depth 10.5	1/4	15	84	22
CQ2B80-□D	10~50	43.5+st	25	98	12.5	M16×2.0	21	132	6	22	10	77	11	17.5/depth 13.5	3/8	16	104	26
CQ2B100-□D	10~50	53+st	30	117	13	M20×2.5	27	156	6.5	27	12	94	11	17.5/depth 13.5	3/8	23	123.5	26

Dimensions sheet(Single Action)

Model	B			ΦD	E	F		H	C	ΦI	J	K	L	M	ΦN	ΦO	P			Q		W	Z
Model	5st	10st	20st	ΦD	E	5st	10st	H	C	ΦI	J	K	L	M	ΦN	ΦO	5st	10st	20st	5st 1	0st	W	Z
CQ2B12-□S	22	27	-	6	25	5	5	M3×0.5	6	32	-	5	3.5	15.5	3.5	6.5/depth 3.5	M5×0.8		-	7.5	7.5	-	-
CQ2B16-□S	23.5	28.5	-	8	29	5.5	5.5	M4×0.7	8	38	-	6	3.5	20	3.5	6.5/depth 3.5	M5×0.8		-	8	8	-	10
CQ2B20-□S	24.5	29.5	-	10	36	5.5	5.5	M5×0.8	7	47	-	8	4.5	25.5	5.5	9/depth 7	M5×0.8		-	9	9	-	10
CQ2B25-□S	27.5	32.5	-	12	40	5.5	5.5	M6×1.0	12	52	-	10	5	28	5.5	9/depth 7	M5×0.8		-	11	11	-	10
CQ2B32-□S	28	33	-	16	45	5.5	7.5	M8×1.25	13	60	4.5	14	7	34	5.5	9/depth 7	M5×0.8	1/8	-	11.5	11.5	49.5	18
CQ2B40-□S	34.5	39.5	-	16	52	8	8	M8×1.25	13	69	5	14	7	40	5.5	9/depth 7	1/8		-	11	11	57	18
CQ2B50-□S	-	40.5	50.5	20	64	10.5	10.5	M10×1.5	15	86	7	17	8	50	6.6	11/depth 8	-	1/4		10.5	10.5	71	22

Other Info

Inner-Thread-Type

Inner-Thread-Type CQ2A

Single-Action(with-Spring-extent)

Long Stroke

Model	Stroke(mm)	B	F	P	Q
32	75,100	33	7.5	1/8	10.5
40	75,100	39.5	8	1/8	11
50	75,100	40.5	10.5	1/4	10.5
63	75,100	46	10.5	1/4	15
80	75,100	53.5	12.5	3/8	16
100	75,100	63	13	3/8	23

Thread-outer-Type

Bore(mm)	C	X	ΦD	H	L	K
Bore(mm)	C	X	ΦD	H	L	K
12	9	10.5	6	M5×0.8	14	5
16	10	12	8	M6×1.0	15.5	6
20	12	14	10	M8×1.25	18.5	8
25	15	17.5	12	M10×1.25	22.5	10
32	20.5	23.5	16	M14×1.5	28.5	14
40	20.5	23.5	16	M14×1.5	28.5	14
50	26	28.5	20	M18×1.5	33.5	17
63	26	28.5	20	M18×1.5	33.5	17
80	32.5	35.5	25	M22×1.5	43.5	22
100	32.5	35.5	30	M26×1.5	43.5	27

Inner-Thread-Type

Bore (mm)	O	R
Bore (mm)	O	R
12	M4×0.7	7
16	M4×0.7	7
20	M6×1.0	10
25	M6×1.0	10
32	M6×1.0	10
40	M6×1.0	10
50	M8×1.25	14
63	M10×1.5	18
80	M12×1.75	22
100	M12×1.75	22

Single-Action(with-Spring-extent)

Bore (mm)	A			L
Bore (mm)	5st	10st	20st	5st	10st	20st
12	30.5	40.5	-	8.5	13.5	-
16	32	42	-	8.5	13.5	-
20	34	44	-	9.5	14.5	-
25	37.5	47.5	-	10	15	-
32	40	50	-	12	17	-
40	46.5	56.5	-	12	17	-
50	-	58.5	78.5	-	18	28
