RE Series Flow Control Valve

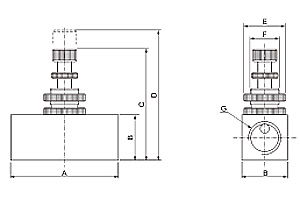

Ordering Code Specification   Model RE-01 RE-02 RE-03 RE-04 Port Size G1/8" G1/4" G3/8" G1/2" Working Medium Air Working-pressure Range 0~0.95MPa Operating Temperature Range 0~60℃ Overall Dimensions   Model/Symbol A B C D E F G RE-01 45 19 43 50 Φ19 M14×1 G1/8 G 45 19 43 50 Φ19 M14×1 G1/4 RE-03 55 25 55 62 Φ25 M18×1 G3/8 RE-04 55 25 55 62 Φ25 M18×1 G1/2
