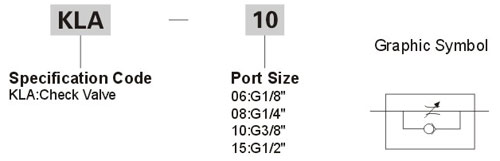

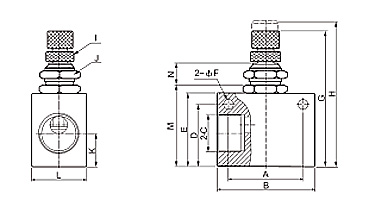

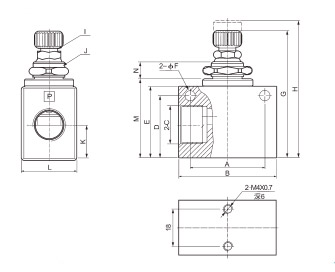

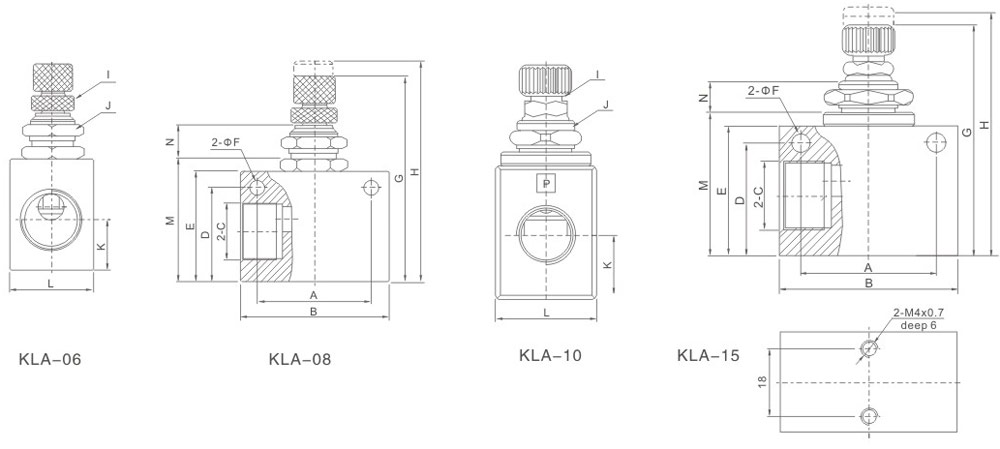

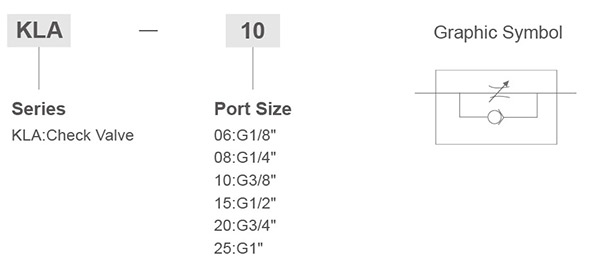

Ordering Code Specification   Model KLA-06 KLA-08 KLA-10 KLA-15 Working Medium Air Port Size G1/8" G1/4" G3/8" G1/2" Working-pressure Range 0.5~0.95 Kgf/cm2 Ensured Pressure Resistance 15.0 Kgf/cm2 Operating Temperature Range -5~60 Body of Material AluminumAlloy Lyl2 Standard Rated Flow(L/min Check Valve 200 450 1250 1650 One-way Valve 400 800 1500 2000 Overall Dimensions   Model/Symbol A B C D E F G H I J K L M N KLA-06 22 32 PT1/8 18 23 4.3 46.8 52.3 M6×0.5 M12×0.75 10 18 26 8.6 KLA-08 26 36 PT1/4 23 27 4.3 50.8 56.3 M6×0.5 M12×0.75 13.5 18 30 8.6   Model/Symbol A B C D E F G H I J K L M N KLA-10 35 50 G3/8 32 37 5.3 65 74 M8×0.75 M16×1 17.5 28 40.5 10.2 KLA-15 35 50 G1/2 32 37 5.3 65 74 M8×0.75 M16×1 13.5 28 40.5 10.2
