XKP Series Quick Exhaust Valve XQ Series Quick Exhaust Valve

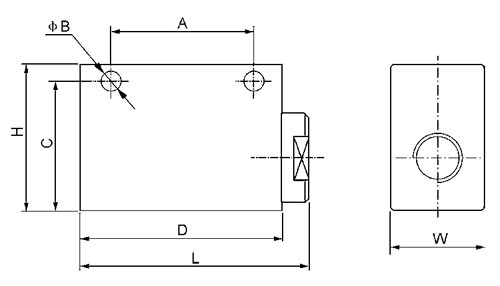

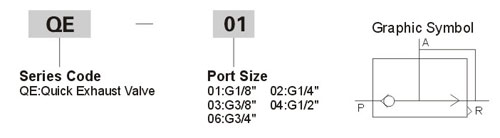

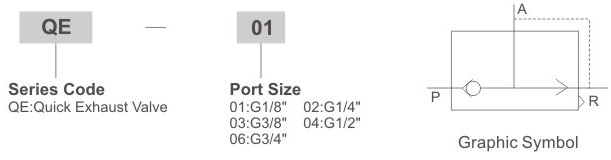

Ordering Code Specification   Model QE-01 QE-02 QE-03 QE-04 QE-06 Port Size G1/8" G1/4" G3/8" G1/2" G3/4" Effective Sectional Area 16mm2 27.5mm2 38mm2 71mm2 72.5mm2 Working Medium Air Working Pressure Range 0~1.0MPa Operating Temperature Range 0~60℃ Overall Dimensions     Model/Symbol Bore L W H A B C D QE-01 G1/8” 46 20 32 30 4.3 27 40 QE-02 G1/4” 62 25 40 39 5.6 33.5 55 QE-03 G3/8” 62 25 40 39 5.6 33.5 55 QE-04 G1/2” 98 38 64 60 8.5 51 90 QE-06 G3/4” 98 38 64 60 8.5 51 90
