XOF Series Air Filter

XOF Series Air Filter

Air Source treatment units

The OF with water separator cleans the compressed air of fluid oil,condensation and dirt
particles,for special application,the standard 40 m filter element may easily be replaced by a
5 m filte relement.

+ Sub-series

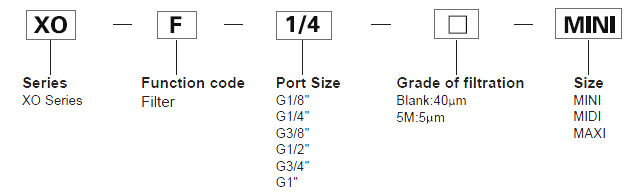

Ordering Code

Specification

Filters		MINI			MIDI			MAXI
40µm	Manual Drain	XOF-1/8-MINI	XOF-1/4-MINI	XOF-3/8-MINI	XOF-3/8-MIDI	XOF-1/2-MIDI	XOF-3/4-MIDI	XOF-3/4-MAXI	XOF-1-MAXI
5µm		XOF-1/8-5M-MINI	XOF-1/4-5M-MINI	XOF-3/8-5M-MINI	XOF-3/8-5M-MIDI	XOF-1/2-5M-MIDI	XOF-3/4-5M-MIDI	XOF-3/4-5M-MAXI	XOF-1-5M-MAXI
Medium		Compressed air
Features of structure		Sintered filter with water spartor
Mounting type		Pipe mounting or foot mounting
Assembly position		Vertical±5°
Connection		G1/8"	G1/4"	G3/8"	G3/8"	G1/2"	G3/4"	G3/4"	G1"
Standard nominal flow rate	XF-...	1000	1200	1400	2700	3000	3000	5000	5300
	XF-...-5M	600	950	1100	1800	1900	1900	3200	3300
Primary pressure	Manual drain	1-16bar
Grade of filtration		40µm/5µm
Max.condensate capacity		22ml
Timperature range		0~60℃
Materials information		Housing:Zinc die-casting;Filter bowl :PC;Metal bowl guard:Aluminium alloy;Sealing:NBR

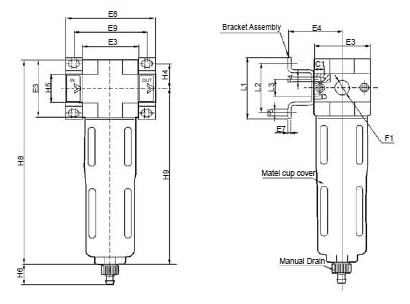

Overall Dimensions

Dimension Sheet

Model	E3	E4	E7	E8	E9	F1	F4	F5
XOF-...-MINI	40	39	2	64	52	G1/8",G1/4",G3/8"	M4	4.5
XOF-...-MIDI	55	47	3	85	70	G1/8",G1/2",G3/4"	M5	5.5
XOF-...-MAXI	66	53	3	96,116	80,91	G3/4",G1"	M5	5.5

Model	L1	L2	L3	H4	H5	H6	H8	H9
XOF-...-MINI	44	35	11	17.5	20	15	144	129
XOF-...-MIDI	71	60	22	24.5	32	15	179	156
XOF-...-MAXI	71	60	22	24.5	32.40	15	203	175
