XOU Series Air Source Treatment Unit

:0086-574-27830006 27830026

:0086-574-87303358

:0086-13777099669

:Fiona Zhou

:sales@china-xcpc.com

:Daao industry zone Xikou town Ningbo City,zhejiang,Province

yina-zhou@hotmail.com

xcpcfiona

Working Medium

Motion pattern

Double Action or single Action

Ensured Pressure Resistance

15.3kgf/cm2(1.5Mpa)

Max.pressure

10.2kgf/cm2(1.0Mpa)

Pneumatic cylinder

+ Sub-series

Ordering Code

Specification

Cylinder diameter(mm)	8	10	12	16	20	25
Working Medium	Air
Motion pattern	Double Action or single Action
Ensured Pressure Resistance	15.3kgf/cm2(1.5Mpa)
Max.pressure	10.2kgf/cm2(1.0Mpa)
Min.pressure	0.5kgf/cm2(0.05Mpa) 1kgf/cm2(0.1Mpa)
Environment and fluid temp	-20~+80℃(Internal Magnetic Install by Tach strap:Type Max:60℃)
Piston veocity	Rubber Bufer(Standard),Air Buffer(Option)
Buffering	50~750mm/s
Kinetic energy To Lerance(kgf/cm)	0.2	0.3	0.4	0.9	2.7	4
Pipe Size	M5×0.8				G1/8"

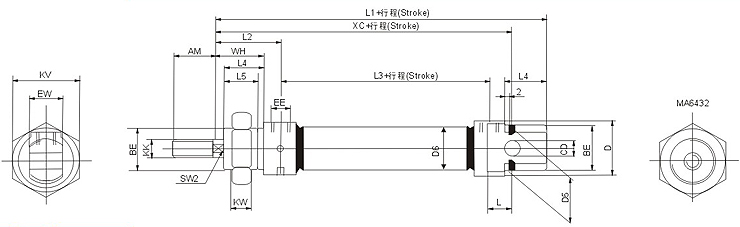

Overall Dimensions

Dimensions sheet

Bore/Symbol	AM	BE	ΦCD	ΦD	ΦD5	ΦD6	EE	EW	AM	KK	KV	KW	L	L1	L2	L3	L4	L5	SW2	WH	XC
8	12	M12×1.25	4	15	15	12	M5	8	12	M4	19	7	6	78	22	34	12	10	-	16	64
10	12	M16×1.25	4	15	15	12	M5	8	12	M4	19	7	6	78	22	34	12	10	-	16	64
12	16	M16×1.5	6	20	20	16	M5	12	16	M6	24	6	9	89	28	38	17	15	5	22	75
16	16	M16×1.5	6	20	20	16	M5	12	16	M6	24	6	9	95	28	44	17	15	5	22	82
20	20	M22×1.5	8	27	27	22	G1/8"	16	20	M8	30	8	12	112	32	51.6	20	18	7	24	95
25	22	M22×1.5	8	27	27	22	G1/8"	16	22	M10×1.25	30	8	12	119.5	36	53.1	22	20	8	26	104

Other Info

Structure

NO.	Designation
1	Piston Rod
2	Piston Rod Nut
3	Front Cover Seal
4	Bearing
5	Hexagon Screw
6	Front Cover
7	Cushion Ring
8	O-ring

NO.	Designation
9	Barrel
10	Piston rod O-ring
11	Piston O-ring
12	Magnet(Optional)
13	Wear Ring
14	Piston
15	Hex Socket Screw
16	Back Cover

Stroke

Bore(mm)	Standard stroke	Max.Stroke(mm)
8	10,25,40,50,80,100,125,160,200	400
10	10,25,40,50,80,100,125,160,200	400
12	10,25,40,50,80,100,125,160,200	400
16	10,25,40,50,80,100,125,160,200	400
20	25,40,50,80,100,125,150,160,175,200,250,300	1000
25	25,40,50,80,100,125,150,160,175,200,250,300	1000
