MAC6432-N40X150

Working Medium

Motion pattern

Double Action or single Action

Ensured Pressure Resistance

15.3kgf/cm2(1.5Mpa)

Max.pressure

10.2kgf/cm2(1.0Mpa)

Pneumatic cylinder

+ Sub-series

Ordering Code

Specification

Cylinder diameter(mm)	8	10	12	16	20	25
Working Medium	Air
Motion pattern	Double Action or single Action
Ensured Pressure Resistance	15.3kgf/cm2(1.5Mpa)
Max.pressure	10.2kgf/cm2(1.0Mpa)
Min.pressure	0.5kgf/cm2(0.05Mpa) 1kgf/cm2(0.1Mpa)
Environment and fluid temp	-20~+80℃(Internal Magnetic Install by Tach strap:Type Max:60℃)
Piston veocity	Rubber Bufer(Standard),Air Buffer(Option)
Buffering	50~750mm/s
Kinetic energy To Lerance(kgf/cm)	0.2	0.3	0.4	0.9	2.7	4
Pipe Size	M5×0.8				G1/8"

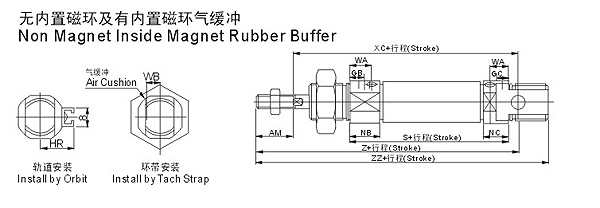

Overall Dimensions

Dimensions sheet

Bore	GB	GC	WA	WB	H	HR	K	KK	KV	KW	NB	NC	NA	ΦND	RR	S	SW	U	WH	XC	Z	ZZ
φ8	7	5	-	-	28	10	-	M4×0.7	19	6	11.5	9.5	15	12	10	46	7	6	16	64	76	86
φ10	7(5.5)	7(5.5)	10.5	4.5	28	10.5	-	M4×0.7	19	6	11.5(13.5)	9.5(13.5)	15	12	10	46(53)	7	6	16	64(71)	76(83)	86(93)
φ12	8(5.5)	6(5.5)	9.5	5.5	38	14	5	M6×4	24	8	12.5(12.5)	10.5(12.5)	18	16	14	50(54)	10	9	22	75(79)	91(95)	105(109)
φ16	8(5.5)	6(5.5)	9.5	5.5	38	14	5	M6×0.8	24	8	12.5	10.5(12.5)	18	16	13	56	10	9	22	82	98	111
φ20	8	8	17	8.5	44	17	6	M8×1.25	32	11	15	15	24	22	11	62	13	12	24	95	95	126
φ25	8	8	20	10	50	20	8	M10×1.25	32	11	15	15	30	22	11	65	17	12	28	104	126	137

Other Info

Structure

NO.	Designation
1	Piston Rod
2	Piston Rod Nut
3	Front Cover Seal
4	Bearing
5	Hexagon Screw
6	Front Cover
7	Cushion Ring
8	O-ring

NO.	Designation
9	Barrel
10	Piston rod O-ring
11	Piston O-ring
12	Magnet(Optional)
13	Wear Ring
14	Piston
15	Hex Socket Screw
16	Back Cover

Stroke

Bore(mm)	Standard stroke	Max.Stroke(mm)
8	10,25,40,50,80,100,125,160,200	400
10	10,25,40,50,80,100,125,160,200	400
12	10,25,40,50,80,100,125,160,200	400
16	10,25,40,50,80,100,125,160,200	400
20	25,40,50,80,100,125,150,160,175,200,250,300	1000
25	25,40,50,80,100,125,150,160,175,200,250,300	1000
