Pneumatic cylinder

+ Sub-series

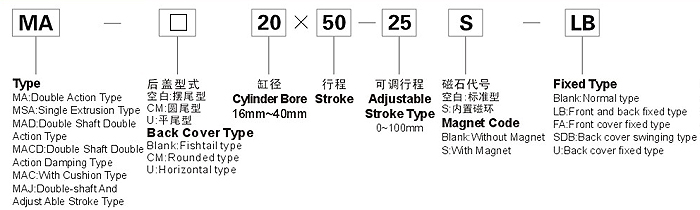

Ordering Code

Specification

Bore(mm)		16	20	25	32	40
Motion pattern		Double Action or Single Action
Working Medium		空气/Air
Fixed Type		Normal Type LB/Type FA/Type SDB/Type U/Type
Operating Voltage Range		0.1~0.9MPa
Ensured Pressure Resistance		1.35MPa
Operating Temperature Range		-5~70℃
Operating Speed Range		50~800mm/s
Buffer Type	Standard Type	Anti-crash cushion
	Damping Type	-	Adjustable cushion
Pipe Size		M5×0.8	G1/8"

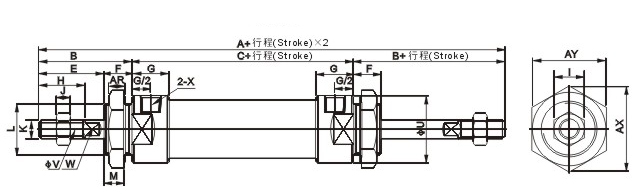

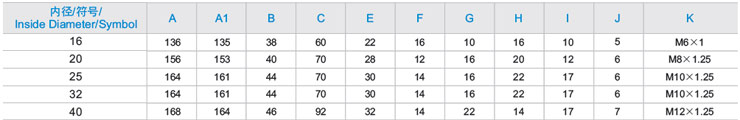

Overall Dimensions

MAD

Other Info

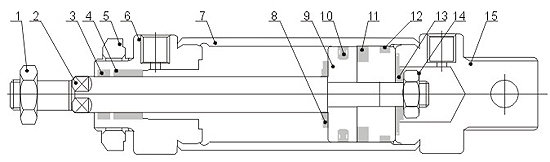

Structure

NO.	Designation
1	Piston Rod Nut
3	Front Cover Seal Ring
5	Front Cover Nut
7	Stainless steel tube
9	Piston
11	Magnet(Optional)
13	Seal cushion
15	Back Cover

NO.	Designation
2	Piston Rod
4	Oiled Bearing
6	Front Cover
8	Anti-crash cushion
10	Piston O-Ring
12	Wear Ring
14	Hex socket screw

Stroke

Bore(mm)	Standard Stroke	Max.Stroke	Permissible Stroke
16	25 50 75 80 100 125 160 175 200	300	500
20	25 50 75 80 100 125 160 175 200 250 300	500	650
25	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500	500	650
32	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500	500	650
40	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500	500	650
