Bore(mm)

16

20

25

32

40

Motion pattern

Double Action or Single Action

Working Medium

空气/Air

Fixed Type

Normal Type LB/Type FA/Type SDB/Type U/Type

Operating Voltage Range

0.1~0.9MPa

Ensured Pressure Resistance

1.35MPa

Operating Temperature Range

-5~70℃

Operating Speed Range

50~800mm/s

Buffer Type

Standard Type

Anti-crash cushion

Damping Type

-

Adjustable cushion

Pipe Size

M5×0.8

G1/8"

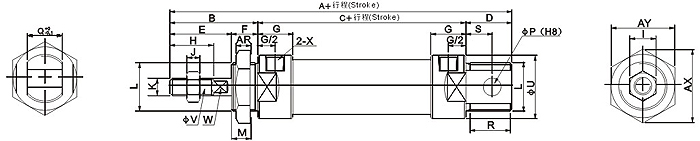

Bore/Symbol

A

A1

A2

B

C

D

D1

E

F

G

H

I

J

K

16

114

114

98

38

60

16

16

22

16

10

16

10

5

M6×1

20

137

128

116

40

76

21

12

28

12

16

20

12

6

M8×1.25

25

141

134

120

44

76

21

14

30

14

16

22

17

6

M10×1.25

32

147

134

120

44

76

27

14

30

14

16

22

17

6

M10×1.25

40

149

136

122

46

76

27

14

32

14

16.7

24

17

7

M12×1.25

Bore/Symbol

L

M

P

Q

R

R1

S

U

V

W

X

AR

AX

AY

16

M16×1.5

14

6

12

14

14

9

21

6

5

M5

6

24

27.5

20

M22×1.5

10

8

16

19

10

12

27

8

6

G1/8"

7

33

29

25

M22×1.5

12

8

16

19

12

12

30

10

8

G1/8"

7

33

29

32

M24×2.0

12

10

16

25

12

15

35

12

10

G1/8"

8

37

32

40

M30×2.0

12

12

20

25

12

15

41.6

16

14

G1/8"

9

47

41
