XOU Series Air Source Treatment Unit

:0086-574-27830006 27830026

:0086-574-87303358

:0086-13777099669

:Fiona Zhou

:sales@china-xcpc.com

:Daao industry zone Xikou town Ningbo City,zhejiang,Province

yina-zhou@hotmail.com

xcpcfiona

Motion pattern

Double Action or Single Action

Working Medium

Operating Voltage Range

Ensured Pressure Resistance

Operating Speed Range

Pneumatic cylinder

+ Sub-series

MALJ-25X50-25

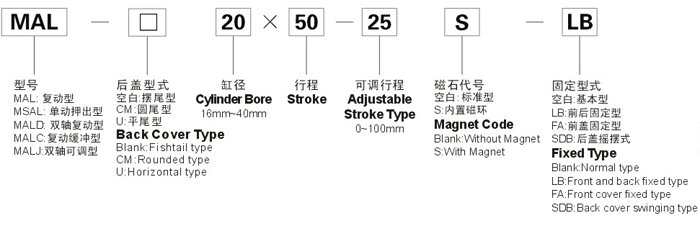

Ordering Code

Specification

Bore(mm)		16	20	25	32	40
Motion pattern		Double Action or Single Action
Working Medium		空气/Air
Fixed Type		Normal Type LB/Type FA/Type SDB/Type
Operating Voltage Range		0.1~0.9MPa
Ensured Pressure Resistance		1.35MPa
Operating Temperature Range		-5~70℃
Operating Speed Range		30~800mm/s
Buffer Type	Standard Type	Anti-crash cushion
	Damping Type	-	Adjustable cushion
Port Size		M5×0.8	G1/8"			G1/4"

Overall Dimensions

MAL

MAL-CM

MAL-U

Dimensions sheet

Bore/Symbol	A	A1	A2	B	C	D	D1	E	F	G	H	I	J	K
16	114	114	98	38	60	16	16	22	16	10	16	10	5	M6×1
20	131	122	110	40	70	21	12	28	12	16	20	12	6	M8×1.25
25	135	128	114	44	70	21	14	30	14	16	22	17	6	M10×1.25
32	141	128	114	44	70	27	14	30	14	16	22	17	6	M10×1.25
40	165	152	138	45	92	27	14	32	14	22	24	17	7	M12×1.25

Bore/Symbol	L	M	P	Q	R	R1	S	U	V	W	X	AR	AX	AY
16	M16×1.5	14	6	12	14	14	9	21	6	5	M5	6	25	22
20	M22×1.5	10	8	16	19	10	12	29	8	6	G1/8"	7	33	29
25	M22×1.5	12	8	16	19	12	12	34	10	8	G1/8"	7	33	29
32	M24×2.0	12	10	16	25	12	15	39.5	12	10	G1/8"	8	37	32
40	M30×2.0	12	12	20	25	12	15	49.5	16	14	G1/4"	9	37	41

Other Info

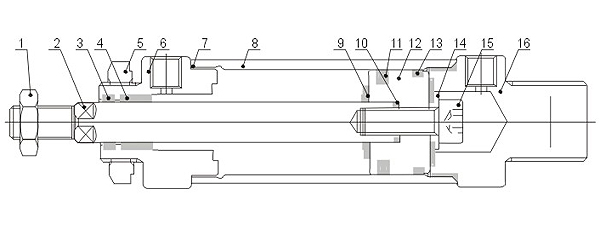

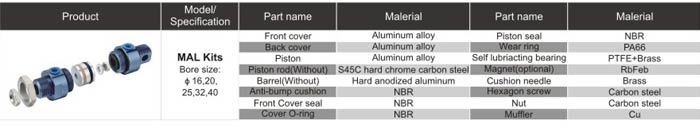

Structure

NO.	Designation
1	Piston Rod Nut
3	Front Cover Seal Ring
5	Front Cover Nut
7	Pipe wall O-ring
9	Auti-crash cushion
11	Piston O-Ring
13	Wear Ring
15	Hex socket screw

NO.	Designation
2	Piston Rod
4	Oiled Bearing
6	Front Cover
8	Aliminum tube
10	Piston rod O-Ring
12	Piston
14	Seal cushion
16	Back Over

Stroke

Bore(mm)	Standard Stroke	Max.Stroke	Permissible Stroke
16	25,50,75, 80,100 ,125,160,175,200	300	500
20	25,50,75,80,100,125,160,175,200, 250,300	500	650
25	25,50,75,80,100,125,160,175,200,250,300,350,400,450,500	500	650
32	25,50,75,80,100,125,160,175,200,250,300,350,400,450,500	500	650
40	25,50,75,80,100,125,160,175,200,250,300,350,400,450,500	500	650
