Pneumatic cylinder

+ Sub-series

MAL-25X50

Ordering Code

Specification

Bore(mm)		16	20	25	32	40
Motion pattern		Double Action or Single Action
Working Medium		空气/Air
Fixed Type		Normal Type LB/Type FA/Type SDB/Type
Operating Voltage Range		0.1~0.9MPa
Ensured Pressure Resistance		1.35MPa
Operating Temperature Range		-5~70℃
Operating Speed Range		30~800mm/s
Buffer Type	Standard Type	Anti-crash cushion
	Damping Type	-	Adjustable cushion
Port Size		M5×0.8	G1/8"			G1/4"

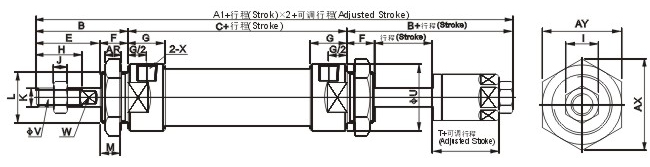

Overall Dimensions

MALJ

Inside Diameter/Symbol	L	M	U	V	W	X	AR	AX	AY	T
20	M22×1.5	10	29	8	6	G1/8"	7	33	29	19
25	M22×1.5	12	34	10	8	G1/8"	7	33	29	21
32	M24×1.5	12	39.5	12	10	G1/8"	8	37	32	21
40	M30×2.0	12	49.5	16	14	G1/4"	9	47	41	21

Other Info

Structure

NO.	Designation
1	Piston Rod Nut
3	Front Cover Seal Ring
5	Front Cover Nut
7	Pipe wall O-ring
9	Auti-crash cushion
11	Piston O-Ring
13	Wear Ring
15	Hex socket screw

NO.	Designation
2	Piston Rod
4	Oiled Bearing
6	Front Cover
8	Aliminum tube
10	Piston rod O-Ring
12	Piston
14	Seal cushion
16	Back Over

Stroke

Bore(mm)	Standard Stroke	Max.Stroke	Permissible Stroke
16	25,50,75, 80,100 ,125,160,175,200	300	500
20	25,50,75,80,100,125,160,175,200, 250,300	500	650
25	25,50,75,80,100,125,160,175,200,250,300,350,400,450,500	500	650
32	25,50,75,80,100,125,160,175,200,250,300,350,400,450,500	500	650
40	25,50,75,80,100,125,160,175,200,250,300,350,400,450,500	500	650
