Plate Type valves

Plate Type valves

Working Medium	40 Micron Filtered Air
Motion Pattern	Inner Guide Type
Position and Way NO.	Two-position three-way
Lubricate	Not Necessary
Working-Pressure	0.15~0.8MPa
Max.Pressure Resistance	1.2MPa

+ Sub-series

Solenoid/Pneumatic control Valve

Two-Position Two-Way Solenoid valve

Pulse valve

Bevel valve

Special solenoid valve

Solenoid valve accessories

HLP Series Pressure Controller

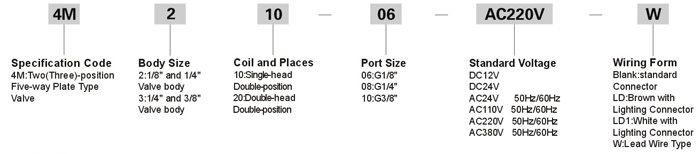

Ordering Code

Specification

Model	4M210-06	4M220-06	4M210-08	4M220-08	4M310-08	4M320-08	4M310-10	4M320-10
Working Medium	40 Micron Filtered Air
Motion Pattern	Inner Guide Type
Position and Way NO.	Two-position three-way
Effective Section Area	14mm 2(CV=0.78)		16mm 2(CV=0.89)		25mm 2(CV=1.39)		30mm 2(CV=1.67)
Port Size	Air Inlet=Exhaust=G1/8”		Air Inlet=G1/4”/Exhaust=G1/8”		Air Inlet=Exhaust=G1/4”		Air Inlet=G3/8”Exhaust=G1/4”
Lubricate	Not Necessary
Working-Pressure	0.15~0.8MPa
Max.Pressure Resistance	1.2MPa
Operating Temperature	5~60℃
Voltage Range	-15%~+10%
Power Consumption	AC380V:2.5VA,AC220V:2.0VA,AC110V:2.5VA,AC24V:3.5VA,DC24V:3.0W,DC12V:2.5W
Insulation & Protection Class	F CIass.IP65
Wiring Form	Connector type
Highest Action Frequency	5 Cycle / Sec
Shortest Excitation Time	0.05 Second

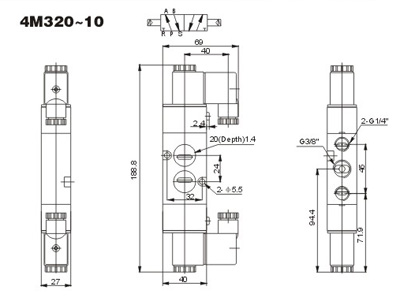

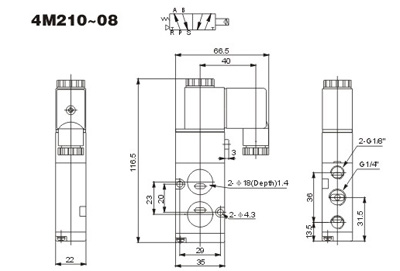

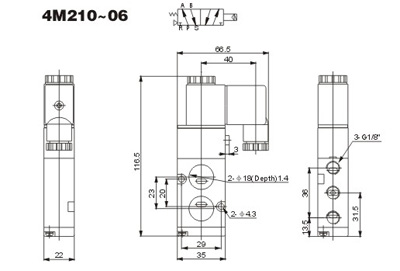

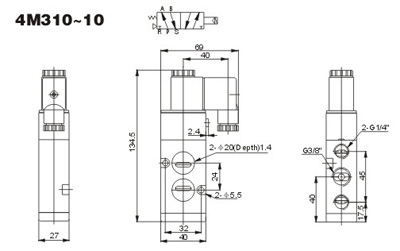

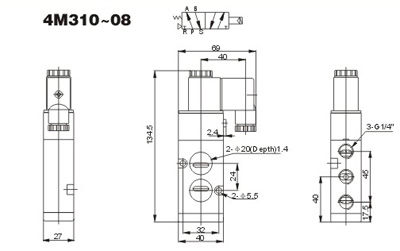

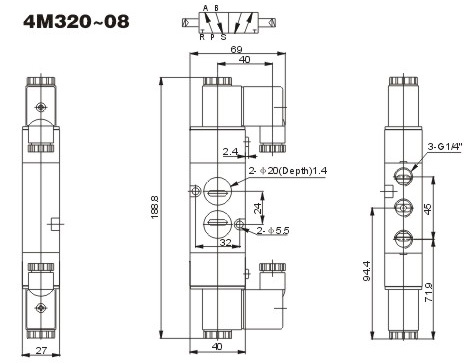

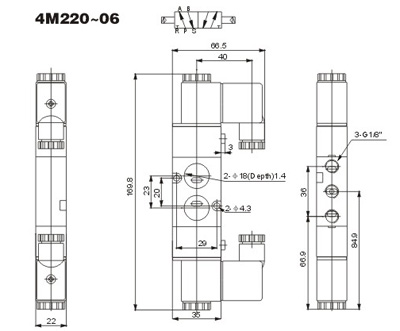

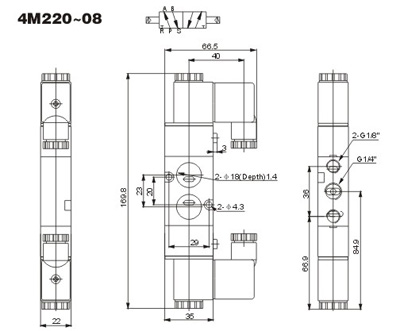

Overall Dimensions
