XOU Series Air Source Treatment Unit

:0086-574-27830006 27830026

:0086-574-87303358

:0086-13777099669

:Fiona Zhou

:sales@china-xcpc.com

:Daao industry zone Xikou town Ningbo City,zhejiang,Province

yina-zhou@hotmail.com

xcpcfiona

Home
Products
Solenoid/Pneumatic control Valve

Solenoid/Pneumatic control Valve

Working Medium	40 Micron Filtered Air
Motion Pattern	Inner Guide Type
Working-Pressure	0.15~0.8MPa
Max.Pressure Resistance	1.2MPa
Operating Temperature	5~50℃
Voltage Range	±10%

+ Sub-series

Plate Type valves

Two-Position Two-Way Solenoid valve

Pulse valve

Bevel valve

Special solenoid valve

Solenoid valve accessories

HLP Series Pressure Controller

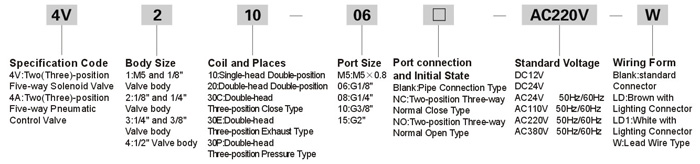

Ordering Code

Specification

Model	4V110~410	4V120~420	4V130~430C/P/E
	4A110~410	4A120~420	4A130~430C/P/E
Position and Way NO.	Two-position Five-way		Three-position Five-way
Working Medium	40 Micron Filtered Air
Motion Pattern	Inner Guide Type
Working-Pressure	0.15~0.8MPa
Max.Pressure Resistance	1.2MPa
Operating Temperature	5~50℃
Voltage Range	±10%
Power Consumption	AC:4.5VA DC:3W
Insulation & Protection Class	F CIass.IP65
Electrical entry	Lead Wire or Connector type
Highest Action Frequency	5 Cycle / Second
Response time	0.05 Second

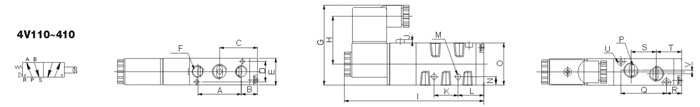

Overall Dimensions

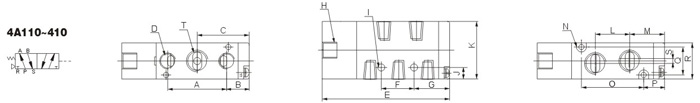

Dimension Sheet-4A110~410

Model	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	R	S	T
4A110-M5	27	14.5	28	5-M5×0.8	68.7	14	21	G1/8"	2-Φ3.3	4	27	30	13	2-Φ3.3	21	14	13	18	/	/
4A110-06	28	14.2	28.2	5-G1/8"	68.7	14	21	G1/8"	2-Φ3.3	4	27	30	13	2-Φ3.3	20.2	16	13	18	3	2
4A210-06	36	13.5	31.5	5-G1/8"	77.7	20	21.5	G1/8"	2-Φ4.3	7	35	38	12.5	2-Φ3.2	22.5	18	17	22	/	/
4A210-08	36	13.5	31.7	2-G1/4"	77.7	20	21.5	G1/8"	2-Φ4.3	7	35	38	12.5	2-Φ3.2	21	21	17	22	3	3-G1/4"
4A310-08	45	17.5	40	5-G1/4"	95.5	24	28	G1/8"	2-Φ4.3	6.5	40	50	15	2-Φ4.3	29	22	20	27	/	/
4A310-10	45	17.5	40	2-G3/8"	95.5	24	28	G1/8"	2-Φ4.3	6.5	40	50	15	2-Φ4.3	28	24	20	27	4	3-G3/8"
4A410-15	63	25.5	57	5-G1/2"	128	28	43	G1/8"	2-Φ5.5	7.5	50	72	21	2-Φ4.3	39	36	27	34	4	/

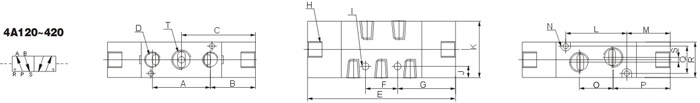

Dimension Sheet-4A120~420

Model	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	R	S	T
4A120-M5	27	27	40.5	5-M5×0.8	81	14	33.5	2-G1/8"	2-Φ3.3	4	27	30	25.5	2-Φ3.3	21	33.5	13	18	/	/
4A120-06	28	26.5	40.5	5-G1/8"	81	14	33.5	2-G1/8"	2-Φ3.3	4	27	30	25.5	2-Φ3.3	20.2	32.5	13	18	3	2
4A220-06	36	28	46	5-G1/8"	92	20	36	2-G1/8"	2-Φ4.3	7	35	38	27	2-Φ3.2	22.5	37	17	22	/	/
4A220-08	36	28	46	2-G1/4"	92	20	36	2-G1/8"	2-Φ4.3	7	35	38	27	2-Φ3.2	21	35.5	17	22	3	3-G1/4"
4A320-08	45	33	55.5	5-G1/4"	111	24	43.5	2-G1/8"	2-Φ4.3	6.5	40	50	30.5	2-Φ4.3	29	44.5	20	27	/	/
4A320-10	45	33	55.5	2-G3/8"	111	24	43.5	2-G1/8"	2-Φ4.3	6.5	40	50	30.5	2-Φ4.3	28	43.5	20	27	4	3-G3/8"
4A420-15	63	39.5	71	5-G1/2"	142	28	57	2-G1/8"	2-Φ5.5	7.5	50	72	35	2-Φ4.3	39	53	27	34	4	/

Dimension Sheet-4V130~430C/P/E

Model	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	R	S	T	U	V
4V130-M5	27	56.3	69.8	13	18	5-M5×0.8	53.5	32.5	154.6	2.5	14	62.8	2-Φ3.3	4	27	2-Φ3.3	30	54.8	14	62.8	/	/
4V130-06	28	56	69.8	13	18	5-G1/8"	53.5	32.5	154.6	2.5	14	62.8	2-Φ3.3	4	27	2-Φ3.3	30	54.8	16	62	2	3
4V230-06	36	67	84.9	17	22	5-G1/8"	66.5	40	189	3	20	75	2-Φ3.2	7	35	2-Φ3.2	38	65.9	18	75.9	/	/
4V230-08	36	67	84.9	17	22	2-G1/4"	66.5	40	189	3	20	75	2-Φ3.2	7	35	2-Φ3.2	38	65.9	21	74.4	3-G1/4"	3
4V330-08	45	71.9	94.4	20	27	5-G1/4"	69	40	208	2.4	24	82.4	2-Φ4.3	6.5	40	2-Φ4.3	50	69.4	22	83.4	/	/
4V330-10	45	71.9	94.4	20	27	2-G3/8"	69	40	207.8	2.4	24	82.4	2-Φ4.3	6.5	40	2-Φ4.3	50	69.4	24	82.4	3-G3/8"	4
4V430-15	63	79.5	111	27	34	5-G1/2"	74	/	/	/	28	97	2-Φ4.3	7.5	50	2-Φ4.3	72	75	36	93	/	4

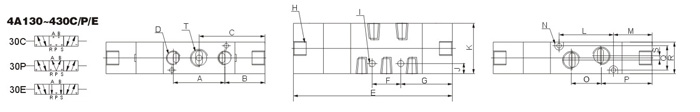

Dimension Sheet-4A130~430C/P/E

Model	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	R	S	T
4A130-M5	27	27	40.5	5-M5×0.8	96	14	33.5	2-G1/8"	2-Φ3.3	4	27	30	25.5	2-Φ3.3	21	33.5	13	18	/	/
4A130-06	28	26.5	40.5	5-G1/8"	96	14	33.5	2-G1/8"	2-Φ3.3	4	27	30	25.5	2-Φ3.3	20.2	32.5	13	18	3	2
4A230-06	36	28	46	5-G1/8"	111	20	36	2-G1/8"	2-Φ4.3	7	35	38	27	2-Φ3.2	22.5	37	17	22	/	/
4A230-08	36	28	46	2-G1/4"	111	20	36	2-G1/8"	2-Φ4.3	7	35	38	27	2-Φ3.2	21	35.5	17	22	3	3-G1/4"
4A330-08	45	33	55.5	5-G1/4"	130	24	43.5	2-G1/8"	2-Φ4.3	6.5	40	50	30.5	2-Φ4.3	29	44.5	20	27	/	/
4A330-10	45	33	55.5	2-G3/8"	130	24	43.5	2-G1/8"	2-Φ4.3	6.5	40	50	30.5	2-Φ4.3	28	43.5	20	27	4	3-G3/8"
4A430-15	63	39.5	71	5-G1/2"	142	28	57	2-G1/8"	2-Φ5.5	7.5	50	72	35	2-Φ4.3	39	53	27	34	4	/

Dimension Sheet-4V110~410

Model	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	R	S	T	U	V
4V110-M5	27	14.5	28	13	18	5-M5×0.8	53.5	32.5	98	2.5	14	21	2-Φ3.3	4	27	2-Φ3.3	30	13	14	21	/	/
4V110-06	28	14	28	13	18	5-G1/8"	53.5	32.5	98	2.5	14	21	2-Φ3.3	4	27	2-Φ3.3	30	13	14	21	2	3
4V210-06	36	13.5	31.5	17	22	5-G1/8"	66.5	40	116.5	3	20	21.5	2-Φ4.3	7	35	2-Φ3.3	38	12.5	18	22.5	/	/
4V210-08	36	13.5	31.5	17	22	2-G1/4"	66.5	40	116.5	3	20	21.5	2-Φ4.3	7	35	2-Φ3.3	38	12.5	18	22.5	3-G1/4"	3
4V310-08	45	17.5	40	20	27	5-G1/4"	69	40	134.5	2.4	24	28	2-Φ4.3	6.5	40	2-Φ4.3	50	15	22	29	/	/
4V310-10	45	17.5	40	20	27	2-G3/8"	69	40	134.5	2.4	24	28	2-Φ4.3	6.5	40	2-Φ4.3	50	15	24	28	3-G3/8"	4
4V410-15	63	25.5	57	27	34	5-G1/2"	74	/	168	/	/	43	2-Φ4.3	7.5	50	2-Φ4.3	72	21	36	39	/	4

Dimension Sheet-4V120~420

Model	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	R	S	T	U	V
4V120-M5	27	56.3	69.8	13	18	5-M5×0.8	53.5	32.5	139.6	2.5	14	62.8	2-Φ3.3	4	27	2-Φ3.3	30	54.8	14.1	62.8	/	/
4V120-06	28	56	69.8	13	18	5-G1/8"	53.5	32.5	139.6	2.5	14	62.8	2-Φ3.3	4	27	2-Φ3.3	30	54.8	16	62.8	2	3
4V220-06	36	67	85	17	22	5-G1/8"	66.5	40	169.8	3	20	75	2-Φ4.3	7	35	2-Φ3	38	66	18	76	/	/
4V220-08	36	67	85	17	22	2-G1/4"	66.5	40	169.8	3	20	75	2-Φ4.3	7	35	2-Φ3.2	38	66	21	74.4	3-G1/4"	3
4V320-08	45	71.9	94.4	20	27	5-G1/4"	69	40	188.8	2.4	24	82.4	2-Φ4.3	6.5	40	2-Φ4.3	50	69.4	22	83.4	/	/
4V320-10	45	71.9	94.4	20	27	2-G3/8"	69	40	188.8	2.4	24	82.4	2-Φ4.3	6.5	40	2-Φ4.3	50	69.4	24	82.4	3-G3/8"	4
4V420-15	63	79.5	111	27	34	5-G1/8"	74	/	/	/	28	97	2-Φ5.5	7.5	50	2-Φ4.3	72	75	36	93	/	4

Other Info

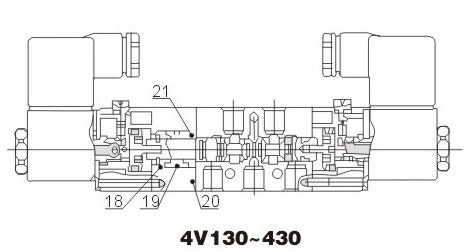

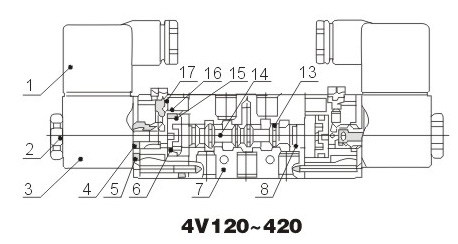

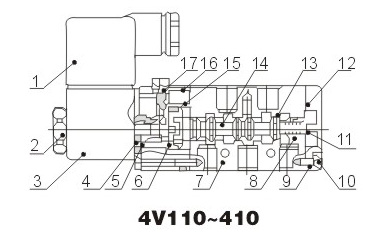

Internal structure

Designation

Connector

Active Amature

Body

Screw

O-Ring

Spring

Nut

Steel Part

Wearing

Spring

Spool

Side Cover

Coil

Piston

End Cap

Seal ring

O-Ring

Spring Seat
