XA series FRL

XA series FRL

Filter Precision		25µ
Highest Working Pressure		1.0MPa
Ensured pressure Resistance		1.5MPa
Operating Temperature Range		5-60℃

+ Sub-series

XG series FRL

XMA series Metal cup FRL

SAH/HAD/XADV Sereis Auto drain

FRL accessories

Other FRL

PIR Series Precision Regulator

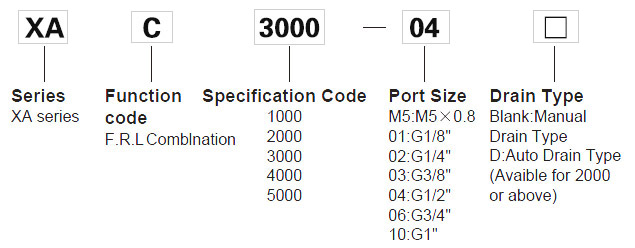

Ordering Code

Specification

Model		XAC1000-M5	XAC2000-01	XAC2000-02	XAC3000-02	XAC3000-03	XAC4000-03	XAC4000-04	XAC4000-06	XAC5000-06	XAC5000-10
Rated Flow		90	500	500	2000	2000	4000	4000	4500	5000	5000
Port Size		M5	G1/8"	G1/4"	G1/4"	G3/8"	G3/8"	G1/2"	G3/4"	G3/4"	G1"
Filter Precision		25µ
Highest Working Pressure		1.0MPa
Ensured pressure Resistance		1.5MPa
Operating Temperature Range		5-60℃
Range of Adjustable Pressure		0.05-0.7MPa	0.05-0.85MPa
Recommended Oil Use		lSO VG 32
Container Material		Polycarbonate
Protective Cover		Not Available			Available
Drain Function		Differential Drain			Differential Drain/Automatic Drain
Valve Type
Composing Elementsl	FiIter	XAF1000-M5	XAF2000-01	XAF2000-02	XAF3000-02	XAF3000-03	XAF4000-03	XAF4000-04	XAF4000-06	XAF5000-06	XAF5000-10
	Regulator	XAR1000-M5	XAR2000-01	XAR2000-02	XAR3000-02	XAR3000-03	XAR4000-03	XAR4000-04	XAR4000-06	XAR5000-06	XAR5000-10
	Lubricator	XAL1000-M5	XAL2000-01	XAL2000-02	XAL3000-02	XAL3000-03	XAL4000-03	XAL4000-04	XAL4000-06	XAL5000-06	XAL5000-10

Overall Dimensions

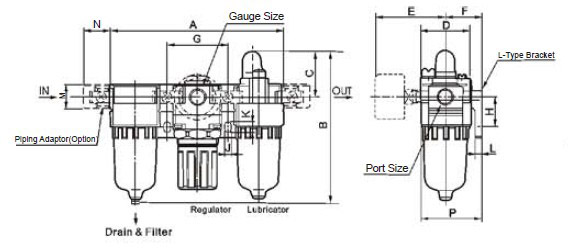

XAC1000

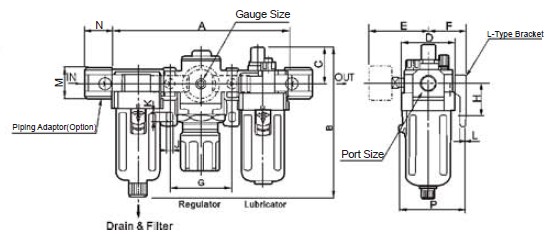

XAC5000

Dimensions sheet

Model	Port Size(G)	A	B	C	D	E	F	G	H	J	K	L	M	N	P
XAC1000	M5	91	84.5	25.5	25	26	25	33	20	4.5	7.5	5	17.5	16	38.5
XAC2000	G1/8"-G1/4"	140	125	38	40	56.8	30	50	24	5.5	8.5	5	22	3	50
XAC3000	G1/4"-G3/8"	181	156.5	38	53	60.8	41	64	35	7	11	7	34.2	26	70.5
XAC4000	G3/8"-G1/2"	238	191.5	41	70	65.5	50	84	0	9	13	7	43.3	33	88
XAC4000-06	G3-G4"	153	193	40.5	70	69.5	50	89	40	9	13	7	46.2	36	88
XAC5000	G3/4"-G1"	300	271.5	48	90	75.5	69.8	105	50	12	16	10.5	55.5	40	115
