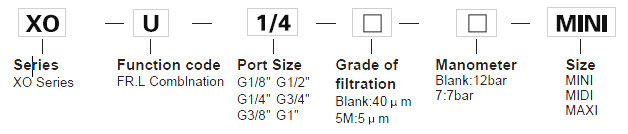

- Ordering Code
- Specification
Service units |
MINI
|
MIDI
|
MAXI
|
Manual Drain |
Working pressure:12bar,40µm |
XOU-1/8-MINI
|
XOU-1/4-MINI |
XOU-3/8-MINI |
XOU-3/8-MIDI |
XOU-1/2-MIDI |
XOU-3/4-MIDI |
XOU-3/4-MAXI |
XOU-1-MAXI |
Working pressure:7bar,40µm |
XOU-1/8-7-MINI |
XOU-1/4-D-7-MINI |
XOU-3/8-7-MINI |
XOU-3/8-7-MIDI |
XOU-1/2-7-MIDI |
XOU-3/4-7-MIDI |
XOU-3/4-7-MAXI |
XOU-1-7-MAXI |
Working pressure:12bar,5µm |
XOU-1/8-5M-MINI |
XOU-1/4-5M-MINI |
XOU-3/8-5M-MINI |
XOU-3/8-5M-MIDI |
XOU-1/2-5M-MIDI |
XOU-3/4-5M-MIDI |
XOU-3/4-5M-MAXI |
XOU-1-5M-MAXI |
Manometer |
0-12bar |
OMA-40-16-1/8 |
OMA-50-16-1/4 |
0-7bar |
OMA-40-10-1/8 |
OMA-50-10-1/4 |
Medium |
Compressed Air |
Features of structure |
Sintered filter with water sparator;MINI/MIDI:MAXI:Piston regulator;Diaphragm type regulator;Direct constant-density lubricator |
Mounting type |
Pipe mounting or foot mounting |
Assembly position |
Vertical± 5° |
Connection |
G1/8" |
G1/4" |
G3/8" |
G3/8" |
G1/2" |
G3/4" |
G3/4" |
G1" |
Standard nominal flow rate |
XOU-...(-A) |
700 |
1000 |
1200 |
2000 |
2600 |
2600 |
7000 |
8000 |
XOU-...-7-(-A) |
800 |
1300 |
1500 |
2500 |
2800 |
2800 |
8500 |
8700 |
XOU-...-5M-(-A) |
600 |
850 |
1050 |
1700 |
1800 |
2100 |
6500 |
7200 |
Primary |
Manualcondensate drain |
1~16bar
|
Automatic condensate drain |
1.5~12bar |
Working pressure |
0.5~12bar/0.5~7bar |
Min.Standard nominal flow rate |
3 L/min |
6 L/min |
10 L/min |
Grade of filtration |
40 m/5 m |
Capacity of condensate fluid |
22ml |
Timperature range |
0~60℃ |
Materials information |
Housing:Zinc die-casting;Filter bowl and oil bowl:PC;Meta bowl guard:Aluminium alloy;Sealing:NBR;Adjusting knob:POM |

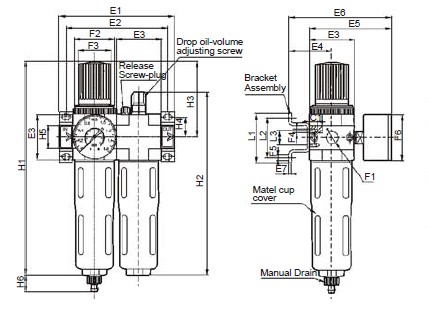

- Overall Dimensions
-
Dimension Sheet
Model |
E1
|
E2
|
E3 |
E4 |
E5 |
E6 |
E7 |
F1 |
F2
|
XOU-...-MINI |
104
|
92 |
40 |
39 |
76 |
95 |
2 |
G1/8",G1/4",G3/8" |
M36*1.5 |
XOU-...-MIDI |
140 |
125 |
55 |
47 |
93 |
112 |
3 |
G1/8",G1/2",G3/4" |
M52*1.5 |
XOU-...-MAXI |
162,182 |
146,157 |
66 |
53 |
104 |
124 |
3 |
G3/4",G1" |
M36*1.5 |
Model |
F3
|
F4
|
F5 |
F6 |
L1 |
L2 |
L3 |
H1 |
H2 |
H3 |
H4
|
H5 |
H6
|
XOU-...-MINI |
31
|
M4 |
4.5 |
40 |
44 |
35 |
11 |
194 |
169 |
69 |
17.5 |
20 |
15 |
XOU-...-MIDI |
50 |
M5 |
5.5 |
52 |
71 |
60 |
22 |
50 |
206 |
97 |
24.5 |
32 |
15 |
XOU-...-MAXI |
31 |
M5 |
5.5 |
63 |
71 |
60 |
22 |
252 |
23 |
80 |
24.5 |
32,40 |
15 |
|
