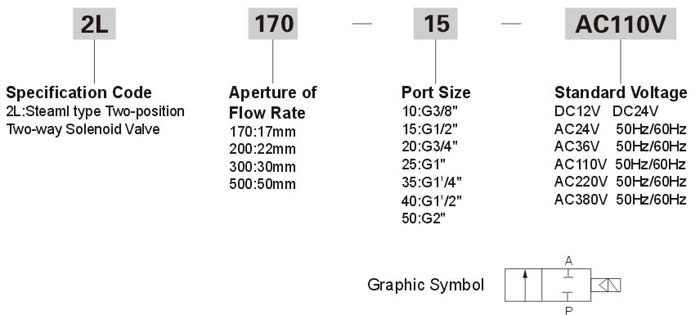

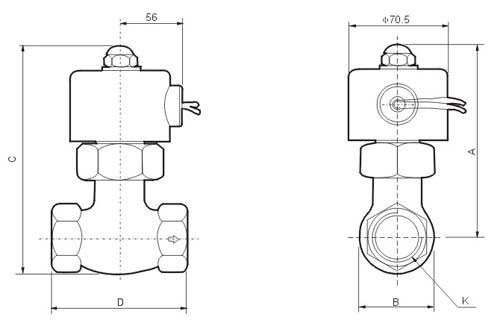

Ordering Code Specification   Model 2L170-10 2L170-15 2L170-20 2L200-25 2L300-35 2L300-40 2L500-50 Working Medium Air,Water,Steam Motion Pattern Guide Type Type Normal Close Type Aperture of Flow Rate(mm) 17 22 30 50 CV Value 4.8 12 20 48 Joint Pipe Bore 3/8″ 1/2″ 3/4″ 1″ 1 1/4″ 1 1/2″ 2″ Operation Fluid Viscosity 20 CST(Below) Working-pressure MPa Air,Water,Steam: 0.1~1.5MPa Max. Pressure Resistance MPa 1.5MPa   Operating Temperature ℃ -5 ~ 80℃ Voltage Range ±10% Material of Body Brass Material of Oil Seal PTFE     Overall Dimensions   Model A B C D K 2L160-10 125 42 146 82 G3/8″ 2L160-15 125 42 146 82 G1/2″ 2L200-20 125 42 146 82 G3/4″ 2L250-25 136 52 162 90.5 G1″ 2L350-35 148 74 185 111 G1 1/4″ 2L400-40 148 74 185 111 G1 1/2″ 2L500-50 176 86 223 163 G2″
