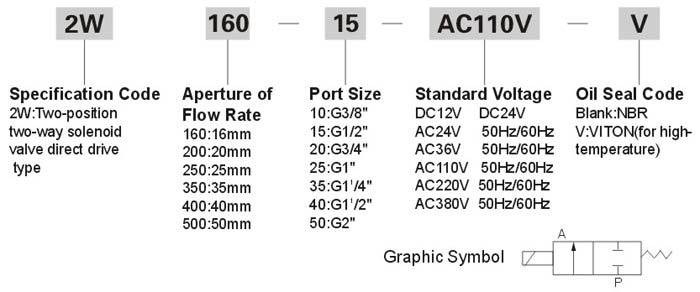

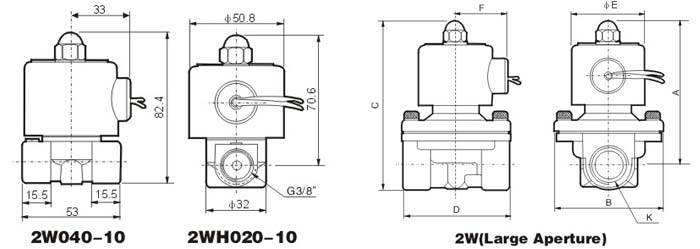

Ordering Code Specification   Model 2W160-10 2W160-15 2W200-20 2W250-25 2W350-35 2W400-40 2W500-50 Working Medium Air,Water,Oil,Gas Motion Pattern Direct Drive Type Type Normal Close Type Aperture of Flow Rate(mm) 16 20 25 35 40 50 CV Value 4.8 7.6 12 24 29 48 Joint Pipe Bore 3/8″ 1/2″ 3/4″ 1″ 1 1/4″ 1 1/2″ 2″ Operation Fluid Viscosity 20 CST(Below) Working-pressure MPa Air：0~0.7MPa; Water：0~0.5MPa; Oil：0~0.5MPa Max. Pressure Resistance MPa 1.0   Operating Temperature ℃ -5 ~ 80℃ Voltage Range ±10% Material of Body Brass (Material of stainless steel need special explain) Material of Oil Seal NBR,EPDM or VITON Overall Dimensions   Dimension sheet Model A B C D E F K 2W160-10 101.5 57 117 69 50 36 G3/8″ 2W160-15 101.5 57 117 69 50 36 G1/2″ 2W200-20 107 57 123.5 73 50 36 G3/4″ 2W250-25 111.5 73.5 134.5 99 50 36 G1″ 2W350-35 142 95 172 123 70.5 56 G1 1/4″ 2W400-40 142 95 172 123 70.5 56 G1 1/2″ 2W500-50 172 123 209 168 70.5 56 G2″
