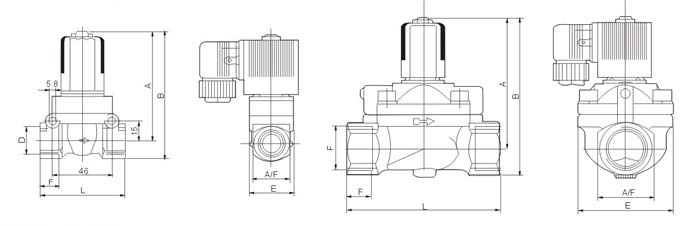

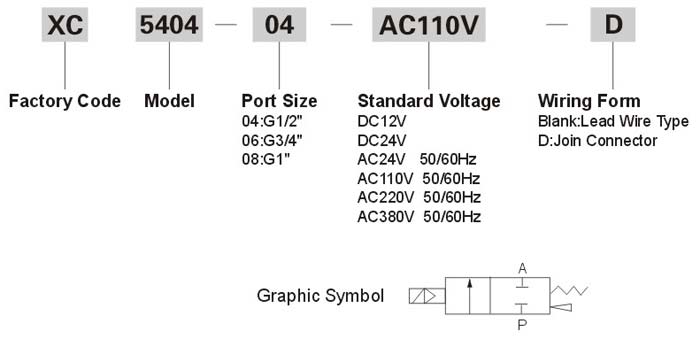

Ordering Code Specification   Model XC5404-04 XC5404-06 XC5404-08 Working Medium Air, Water, Oil, Gas Motion Pattern Guide Type Type Normal Close Type Working-pressure(kgf/cm ) Gas:1~50,Liguid:1~50 Gas:1~40,Liguid:01~25 Gas:1~40, ?Liguid:1~25 Max. Pressure Resistance(kgf/cm2) 75 60 Control Pressure Rang 0.3~0.6MPa (mm)Aperture of Flow Rate 12 20 25 KV Value 2.0 5.0 10.0 Joint Pipe Bore G1/2" G3/4" G1" Operating Temperature Range -5~+150 Voltage Range ±10% Protect Class Power IP65 Consumption AC:5.5VA DC:9W Insulation F Class Material of Body Brass Material of Oil Seal PTFE   Overall Dimensions   Model Bore(mm) Port A B F E L A/F XC5404-04 12.0 G1/2" 83.0 95.5 14 32 65 27 XC5404-06 20.0 G3/4" 93.0 109.0 16 60 100 32 XC5404-08 25.0 G1" 99.5 119.0 18 70 115 40
