ADVU Series compact cylinder

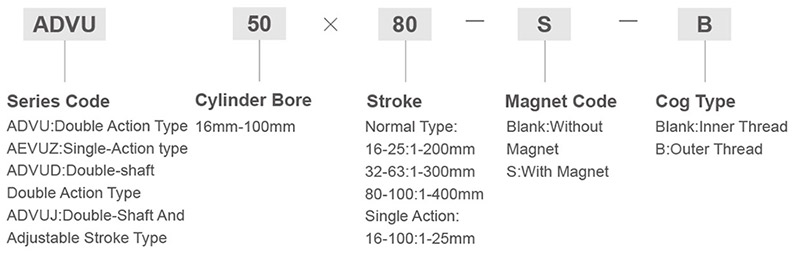

Ordering Code

Specification

Bore(mm)		16	20	25	32	40	50	63	80	100
Action		Double acting, single rod/double rod
Fluid		Filtered compressed air
Ensured Pressure Resistance		1.5MPa
Operating pressure range	ADVU - -P-A	0.12~1.0MPa	0.1~1.0MPa		0.08~1.0MPa			0.06~1.0MPa
	ADVU - -P-A-S2	0.13~1.0MPa	0.12~1.0MPa		0.1~1.0MPa			0.8~1.0MPa
Ambient and fluid temperature		-20~80 (No freezing)
接管口径/Port size		M5			G1/8"					G1/4"
Piston rod thread	Female thread	M4	M5		M6		M8		M10	M12
	Male thread	M8	M10×1.25				M12×1.25		M16×1.5	M20×1.5
Cushion		Rubber bumper

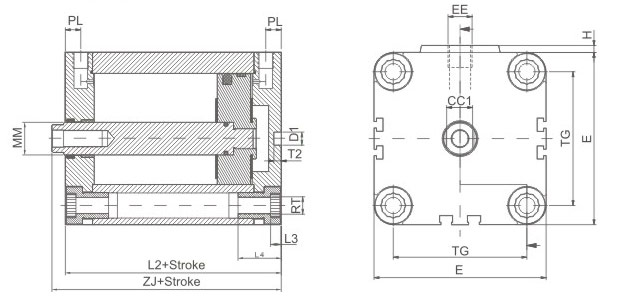

Overall Dimensions

Dimensions sheet

Bore size(mm)	GB	D1φH9	E	EE	H	L2	L3	L4	φMM	PL	RT	T2	TG	ZJ	1
16	18.5	6	29	M5	1	38	3	16	8	8	M4	4	18	42.5	7
20	18.5	6	36	M5	1.5	38	4	18	10	8	M5	4	22	42.5	9
25	18.5	6	40	M5	1.5	39.5	4	18	10	8	M5	4	26	45	9
32	21.5	6	50	G1/8	2	44.5	5	20	12	8	M6	4	32	50.5	10
40	21.5	6	60	G1/8	2.5	45.5	5	20	12	8	M6	4	42	52	10
50	22	6	68	G1/8	3	45.5	6	20	16	8	M8	4	50	53	13
63	24.5	8	87	G1/8	4	50	8	25	16	8	M10	4	62	57.5	13
80	27.5	8	107	G1/8	4	56	8	25	20	8.5	M10	4	82	64	17
100	32.5	8	128	G1/4	5	66.5	8	25	35	10.5	M10	4	103	76.5	22
