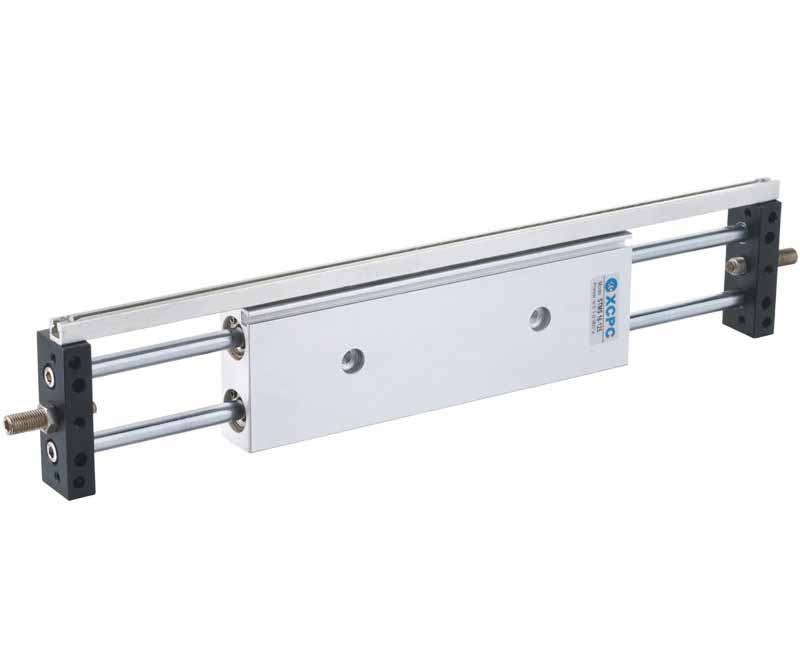

STM Series slide cylinder

STM Series slide cylinder

Motion Pattern	Double action
Working Medium	Air
Operating Temperature Range	-5~+70℃
Ensured Pressure Resistance	13.5kgf/cm2
Operating Speed Range	50~200mm/s

+ Sub-series

DNC Series standard cylinder(ISO6431)

DNG Series Standard cylinder(ISO15552)

SI Series standard cylinder(ISO6431)

SC/SU Series standard cylinder

MB Series standard cylinder(Japan Standard)

CA1 Series standard cylinder

MA6432 Series mini cylinder

MA Series mini cylinder

MAL Series mini cylinder

CM2 Series mini cylinder

CJ2 Series mini cylinder

SDA Series thin type cylinder

ADVU Series compact cylinder

CQ2 Series compact cylinder

CJP Series needle cylinder

CU Series free installation Cylinder

TN Series double-shaft cylinder

CXS Series double-shaft

MGP Series three-shaft cylinder

RSQ Series stopper cylinder

XCK Series Clamping cylinder

MSQ Series rotary cylinder

XHZ2/XHC2 Series pneumatic gripper

XHL2 Series pneumatic gripper

XHT2 Series pneumatic type

CY1 Series rodless cylinder

Special cylinder

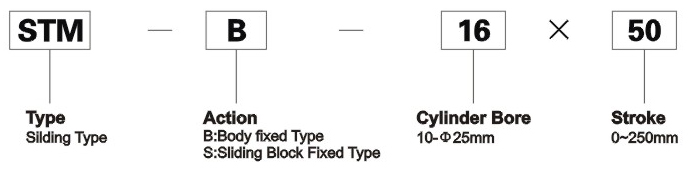

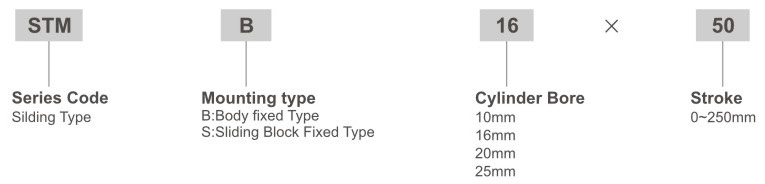

Ordering Code

Specification

Bore(mm)	10	16	20	25
Motion Pattern	Double action
Working Medium	Air
Operating Temperature Range	-5~+70℃
Operating VoltageRange	1.0~9.0kgf/cm2
Ensured Pressure Resistance	13.5kgf/cm2
Operating Speed Range	50~200mm/s
Buffer Type	NO	Shock Absorter
Non-rotating Precision	±0.1°	±0.05°
Port size	M5×0.8			G1/8"

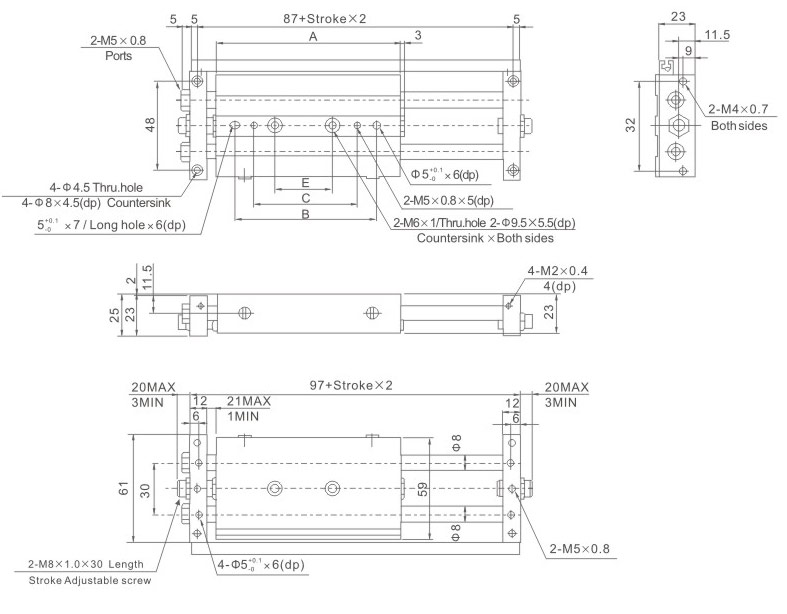

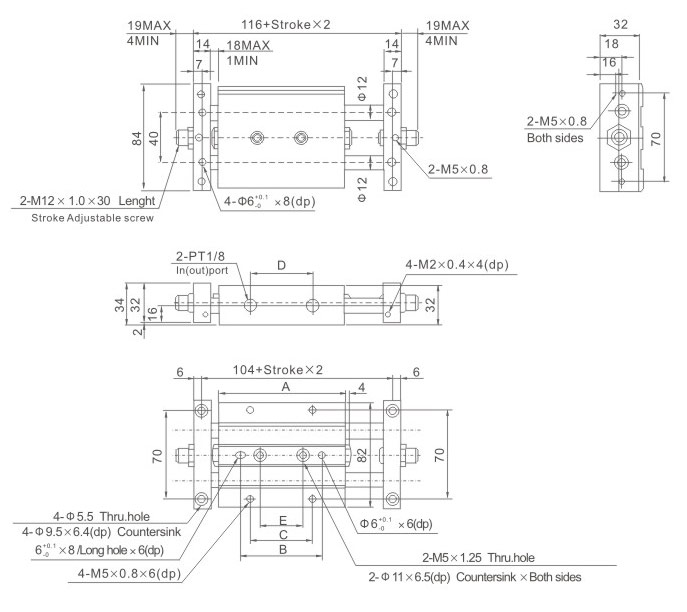

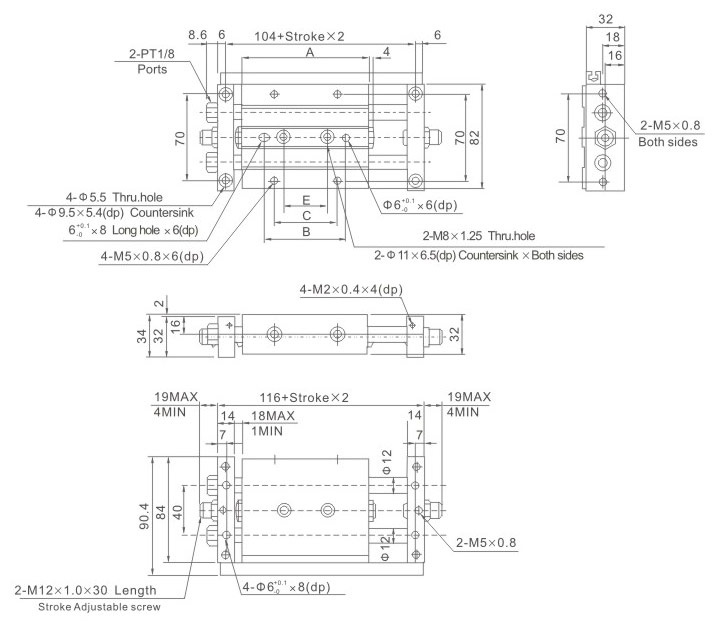

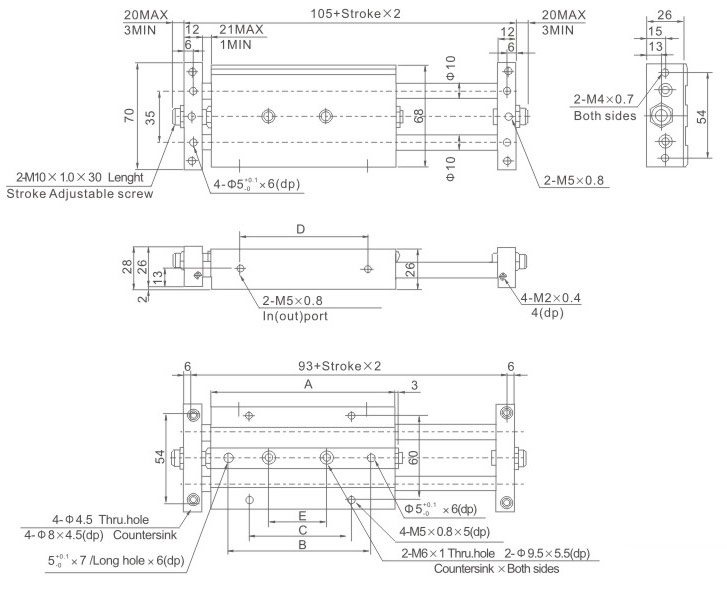

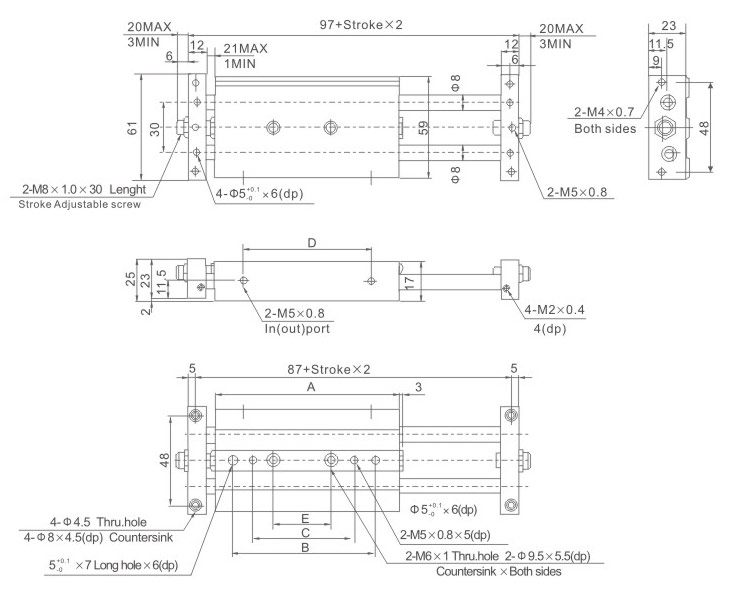

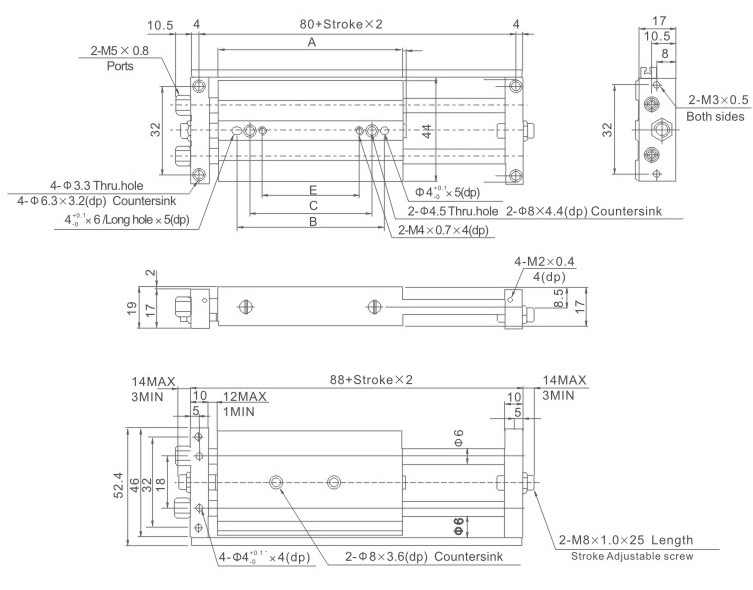

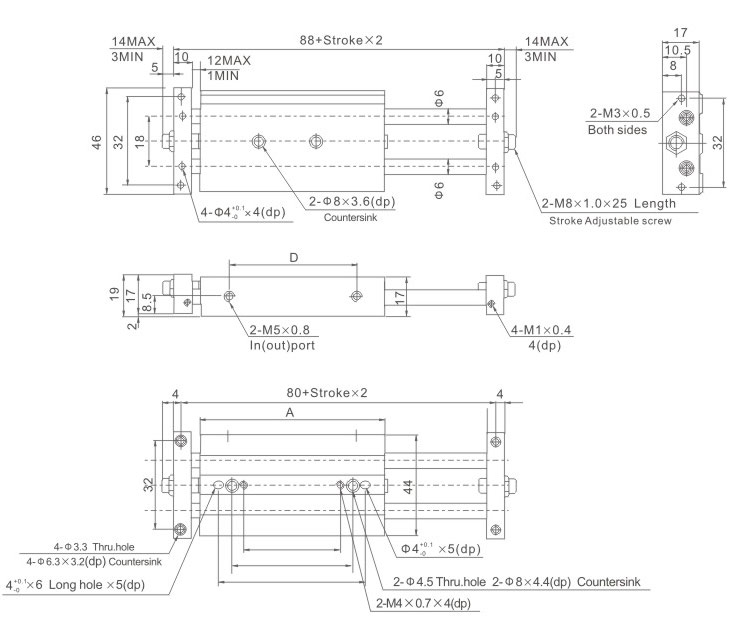

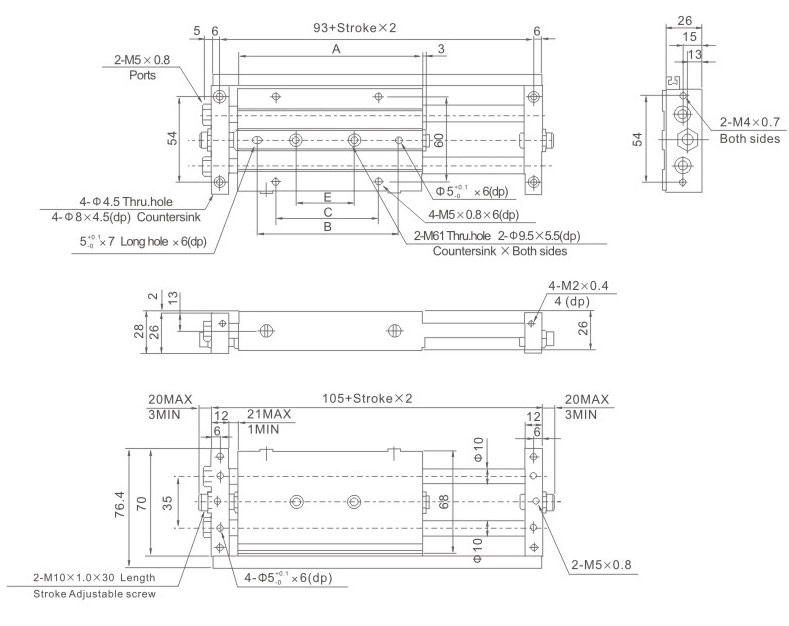

Overall Dimensions

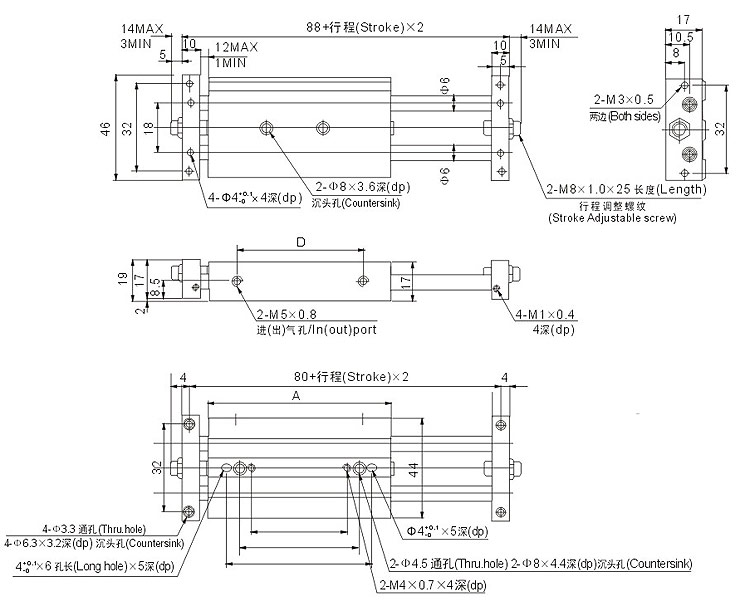

STMB-10

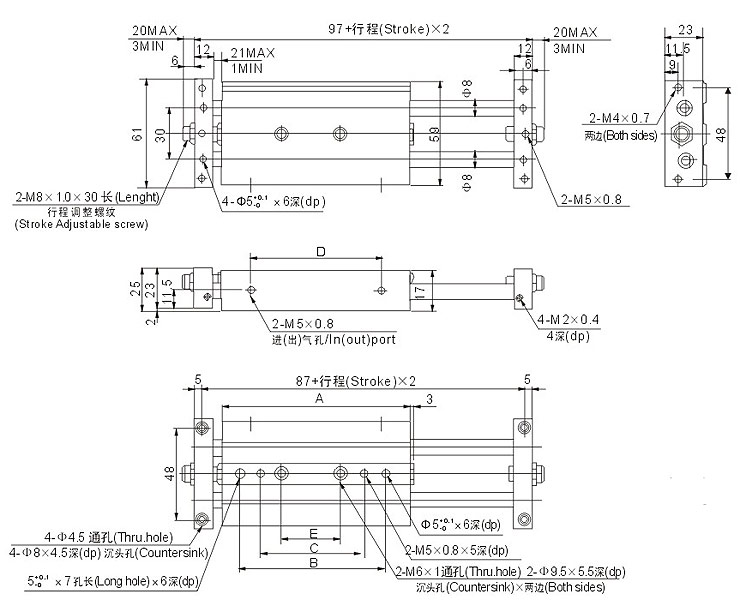

STMB-16

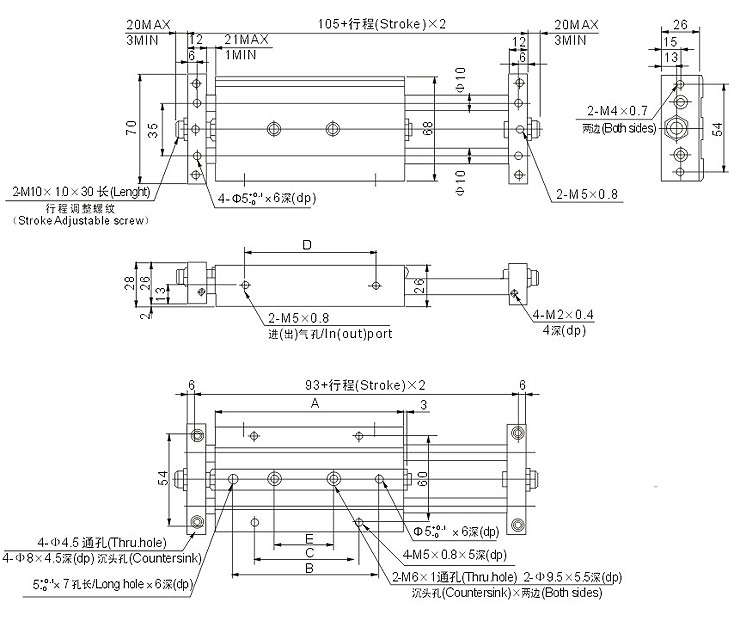

STMB-20

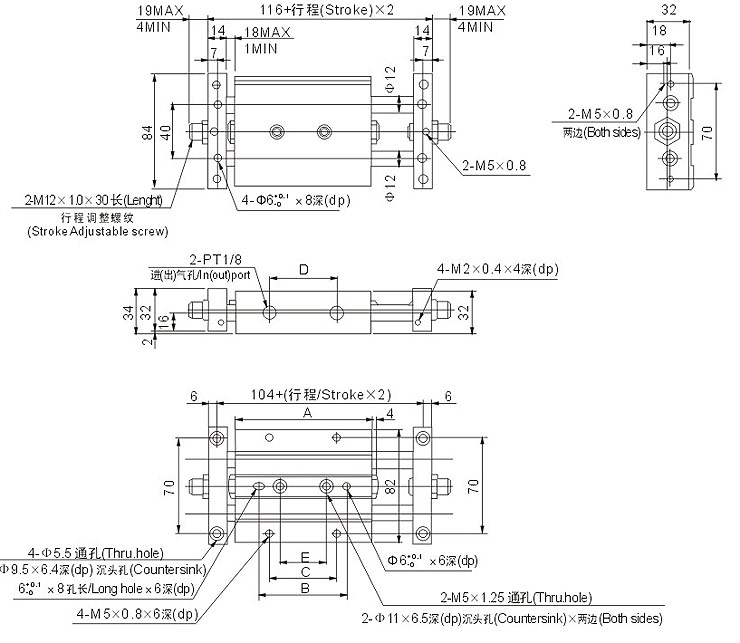

STMB-25

-----------

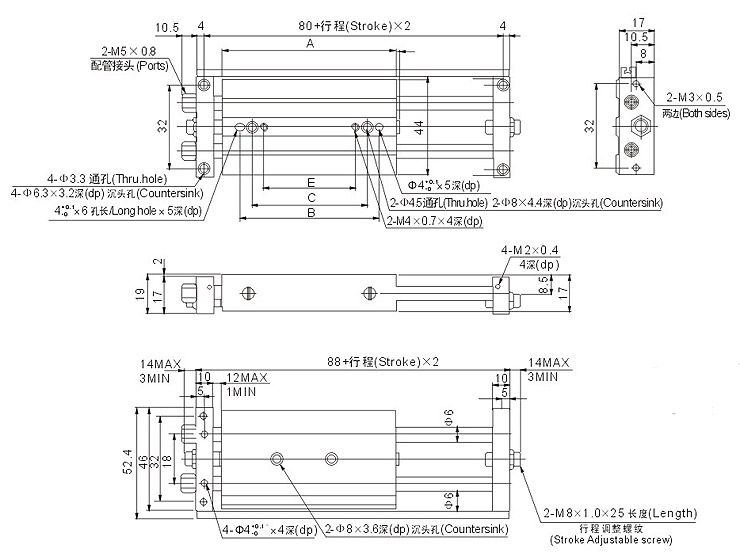

STMS-10

STMS-16

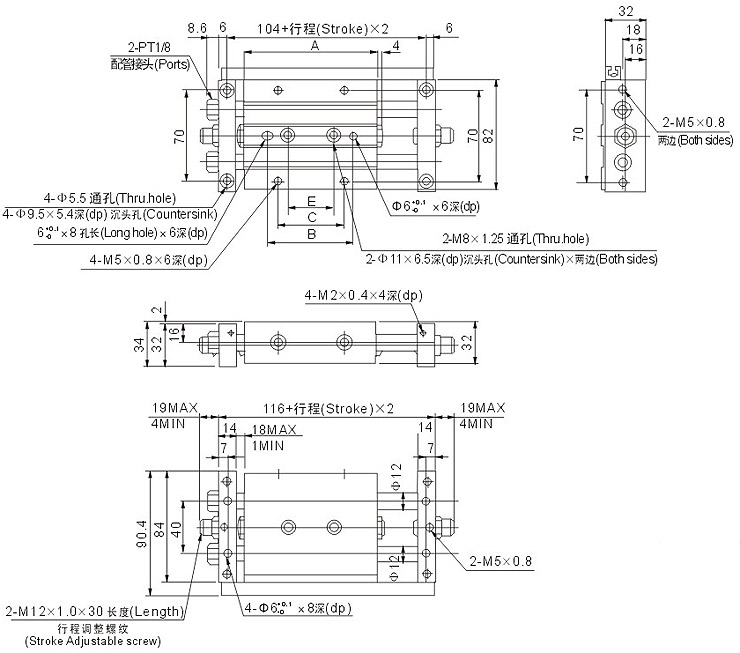

STMS-20

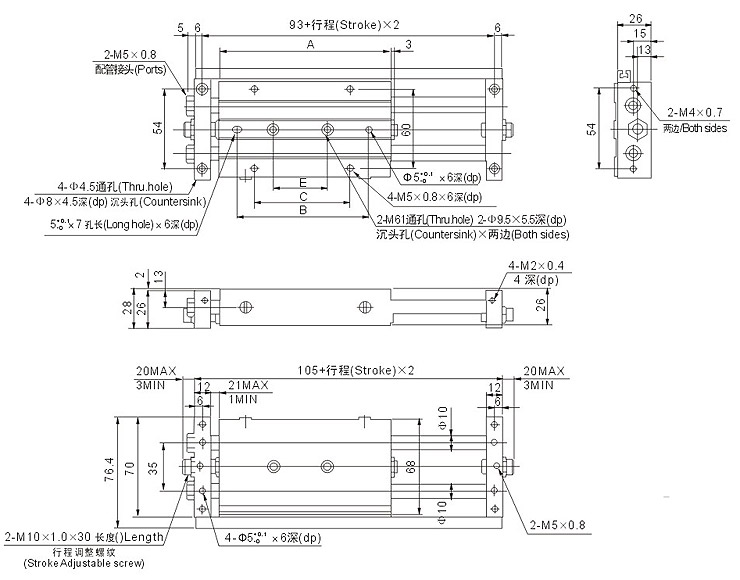

STMS-25

Other Info

STMB-10

Item/Stroke	25	50	75	100
A	81	106	131	156
B	65	85	85	85
C	35	60	60	60
D	46	71	96	121
E	15	40	40	40

STMB-16

Item/Stroke	25	50	75	100	125	150	175	200
A	86	111	136	161	186	211	236	261
B	55	70	105	130	150	150	150	150
C	-	-	75	100	120	120	120	120
D	48	73	98	123	148	173	198	223
E	25	50	45	70	90	90	90	90

STMB-20

Item/Stroke	25	50	75	100	125	150	175	200	250
A	94	119	144	169	194	219	244	269	319
B	60	85	110	135	150	150	150	150	150
C	50	50	75	100	120	120	120	120	120
D	53	78	103	128	153	178	203	228	278
E	35	45	45	70	90	90	90	90	90

STMB-25

Item/Stroke	25	50	75	100	125	150	175	200	250
A	101	126	151	176	201	226	251	276	326
B	65	90	115	140	140	140	140	140	140
C	50	50	75	100	100	100	100	100	100
D	50	75	100	125	150	175	200	225	175
E	35	45	45	70	95	100	100	100	100

-----------

STMS-10

Item/Stroke	25	50	75	100
A	81	106	131	156
B	65	85	85	85
C	35	60	60	121
E	15	40	40	40

STMS-16

Item/Stroke	25	50	75	100	125	150	175	200
A	86	111	136	161	186	211	236	261
B	55	70	105	130	150	150	150	150
C	-	-	75	100	120	120	120	120
E	25	50	45	70	90	90	90	90

STMS-20

Item/Stroke	25	50	75	100	125	150	175	200	250
A	94	119	144	169	194	219	244	269	319
B	60	85	110	135	150	150	150	150	150
C	50	50	75	100	120	120	120	120	120
E	35	45	45	70	90	90	90	90	90

STMS-25

Item/Stroke	25	50	75	100	125	150	175	200	250
A	101	126	151	176	201	226	251	276	326
B	65	90	115	140	140	140	140	140	140
C	50	50	75	100	100	100	100	100	100
E	35	45	45	70	95	100	100	100	100
