MGP Series three-shaft cylinder

MGP Series three-shaft cylinder

Working Medium		Air
Motion Pattern		Double-action
Max.Operating pressure		1.0Mpa(10.2kgf/cm2)
Min. Operating pressure		0.12Mpa(1.2kgf/cm2)
Ambient and Medium Temperature		-10~+60℃

+ Sub-series

DNC Series standard cylinder(ISO6431)

DNG Series Standard cylinder(ISO15552)

SI Series standard cylinder(ISO6431)

SC/SU Series standard cylinder

MB Series standard cylinder(Japan Standard)

CA1 Series standard cylinder

MA6432 Series mini cylinder

MA Series mini cylinder

MAL Series mini cylinder

CM2 Series mini cylinder

CJ2 Series mini cylinder

SDA Series thin type cylinder

ADVU Series compact cylinder

CQ2 Series compact cylinder

CJP Series needle cylinder

CU Series free installation Cylinder

TN Series double-shaft cylinder

CXS Series double-shaft

STM Series slide cylinder

RSQ Series stopper cylinder

XCK Series Clamping cylinder

MSQ Series rotary cylinder

XHZ2/XHC2 Series pneumatic gripper

XHL2 Series pneumatic gripper

XHT2 Series pneumatic type

CY1 Series rodless cylinder

Special cylinder

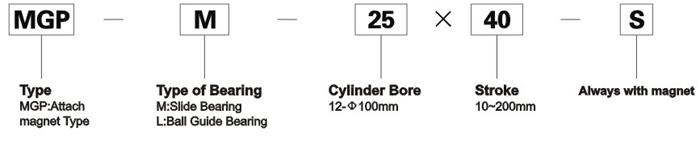

Ordering Code

Specification

Bore(mm)		12	16	20	25	32	40	50	63	80	100
Working Medium		Air
Motion Pattern		Double-action
Ensured Pressure Resistance		1.5Mpa(15.3kgf/cm2)
Max.Operating pressure		1.0Mpa(10.2kgf/cm2)
Min. Operating pressure		0.12Mpa(1.2kgf/cm2)
Ambient and Medium Temperature		-10~+60℃
Piston Speed		50~500mm/s								50~400mm/s
Buffer		Rubber Cushion
Tolerance of Stroke		+1.5 0 mm
Bearing		(Slide bearing/ball guide bdaring)
Precision of Piston rod Non-rotating	Slide Bearing	±0.08°		±0.07°		±0.06°		±0.05°		±0.04°
	Ball Guide Bearing	±0.10°		±0.09°		±0.08°		±0.06		±0.05°
Port size		M5×0.8		G1/8"				G1/4"		G3/8"

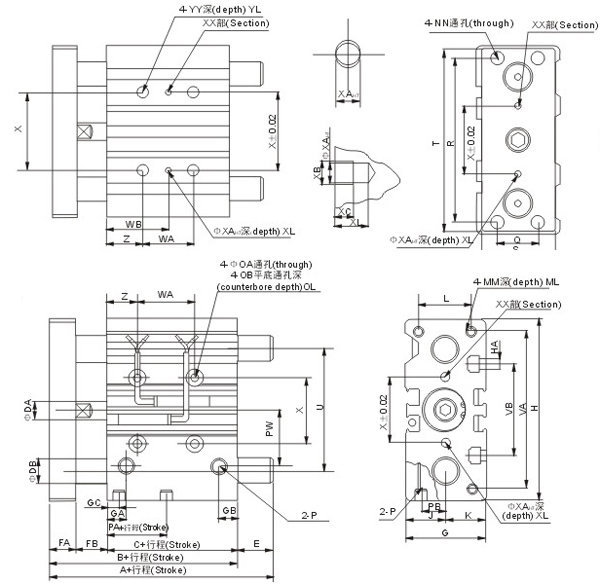

Overall Dimensions

32~63 MPG

Dimensions sheet

Bore size	Standard stroke (mm)	B	C	DA	FA	FB	G	GA	GB	GC	H	HA	J	K	L	MM	ML	NN	OA	OB	OL	P	PA	PB	PW	Q
32	25,50, 70, 100,125, 150,175, 200	59.5	37.5	16	12	10	48	12.5	9	12.5	112	M6	24	24	34	M8×1.25	20	M8×1.25	6.6	11	7.5	RC1/8	7	15	34	30
40		66	44	16	12	10	54	14	10	14	120	M6	27	27	40	M8×1.25	20	M8×1.25	6.6	11	7.5	RC1/8	13	18	38	30
50		72	44	20	16	12	64	14	11	12	148	M8	32	32	46	M10×1.5	22	M10×1.5	8.6	14	9	RC1/4	9	21.5	47	40
63		77	49	20	16	12	78	16.5	13.5	16.5	162	M10	39	39	58	M10×1.5	22	M10×1.5	8.6	14	9	RC1/4	14	28	55	50

Bore size	Standard strok(mm)	R	S	T	U	VA	VB	WA			WB			X	XA	XB	XC	XL	YY	YL	Z
Bore size	Standard strok(mm)	R	S	T	U	VA	VB	25st	50,75,100st	100st or above	25st	50,75,100st	100st or above	X	XA	XB	XC	XL	YY	YL	Z
32	25,50, 70, 100,125, 150,175, 200	96	44	110	78	98	63	24	48	124	33	45	83	42	4	4.5	3	6	M8×1.25	16	21
40		104	44	118	85	106	72	24	48	124	34	46	84	50	4	4.5	3	6	M8×1.25	16	22
50		130	60	146	110	130	92	24	48	124	36	48	86	66	5	6	4	8	M10×1.5	20	24
63		130	70	158	124	142	110	28	52	128	38	50	88	80	5	6	4	8	M10×1.5	20	24

MGPM Slide bearing

Bore size	A			DB	E
Bore size	50st≥	50st＜200st≥	200st＜	DB	50st≥	50st＜200st≥	200st＜
32	97	102	140	20	37.5	42.5	80.5
40	97	102	140	20	31	36	74
50	106.5	118	161	25	34.5	46	89
63	106.5	118	161	25	29.5	41	84

MGPL Ball bushing bearing

Bore size	A				DB	E
Bore size	50st≥	50st＜100st≥	100st＜200st≥	200st＜	DB	50st≥	50st＜100st≥	100st＜200st≥	200st＜
32	81	98	118	140	16	21.5	38.5	58.5	80
40	81	98	118	140	16	15	32	52	74
50	93	114	134	161	20	21	42	62	89
63	93	114	134	161	20	16	37	57	84

------------

80~100 MPG

Bore size	Standard stroke (mm)	B	C	DA	FA	FB	G	GA	GB	GC	H	HA	J	LA	LB	K	L	MM	ML	NN	OA	OB	OL	P	PA	PB
80	25,50, 70, 100, 125,150, 175,200	95.5	56.5	25	22	18	91.5	19	15.5	14.5	202	M12	45.5	38	7.5	46	54	M12×1.75	30	M12×1.75	10.6	17.5	8	RC3/8	14.5	25.5
100	25,50, 70, 100, 125,150, 175,200	116	66	30	25	111.5	23	23	19	18	240	M14	55.5	45	10.5	56	62	M14×2.0	32	M14×2.0	12.5	20	8	RC3/8	17.5	32.5

Bore size	Standard stroke (mm)	PW	Q	R	S	T	U	VA	VB	WA			WB			X	XA	XB	XC	XL	YY	YL	Z
Bore size	Standard stroke (mm)	PW	Q	R	S	T	U	VA	VB	25st	50,75,100st	100st or above	25st	50,75,100st	100st or above	X	XA	XB	XC	XL	YY	YL	Z
80	25,50, 70, 100, 125,150, 175,200	74	52	174	75	198	156	180	140	28	52	128	42	54	92	100	6	7	5	10	M12×1.75	24	28
100	25,50, 70, 100, 125,150, 175,200	89	64	210	90	236	188	210	166	48	72	148	35	47	85	124	6	7	5	10	M14×2.0	28	11

Bore size	A			DB	E
Bore size	50st≥	50st＜200st≥	200st＜	DB	50st≥	50st＜200st≥	200st＜
80	115	142	193	30	18.5	45.5	96.5
100	137	162	203	36	21	46	87

Bore size	A				DB	E
Bore size	50st≥	25st＜50st≥	50st＜200st≥	200st＜	DB	50st≥	25st＜50st≥	50st＜200st≥	200st＜
80	109.5	130	160	193	25	13	33.5	63.5	96.5
100	121	147	180	203	30	5	31	64	87

MGPL Ball bushing bearing

MGPM Slide bearing
