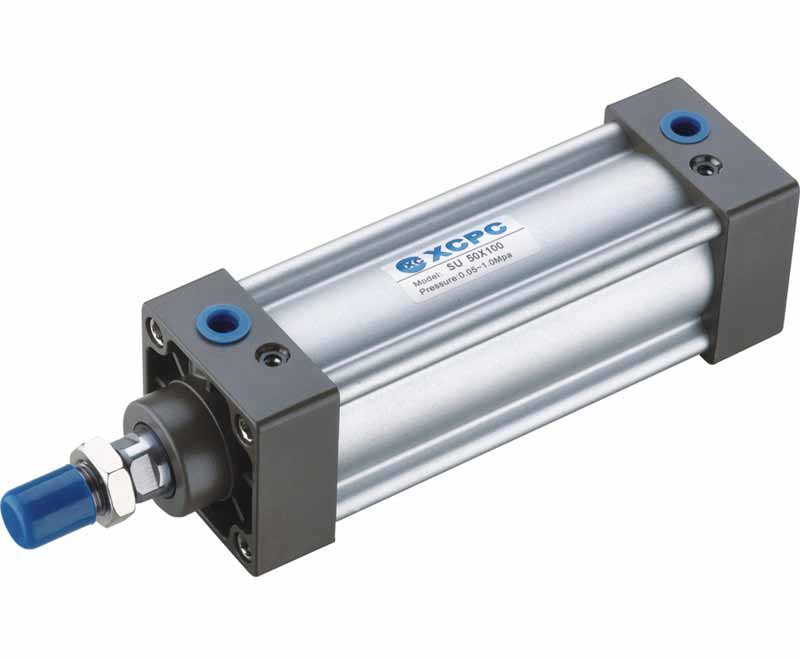

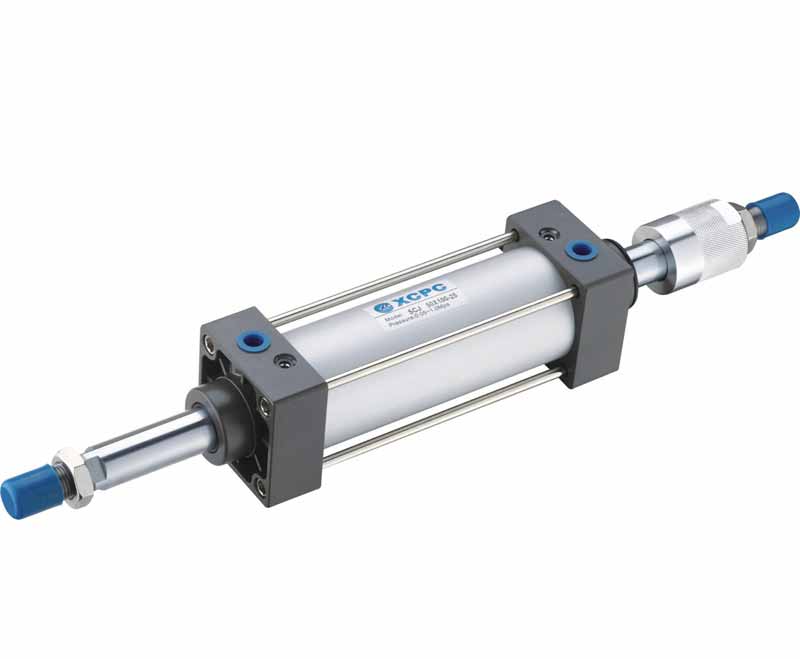

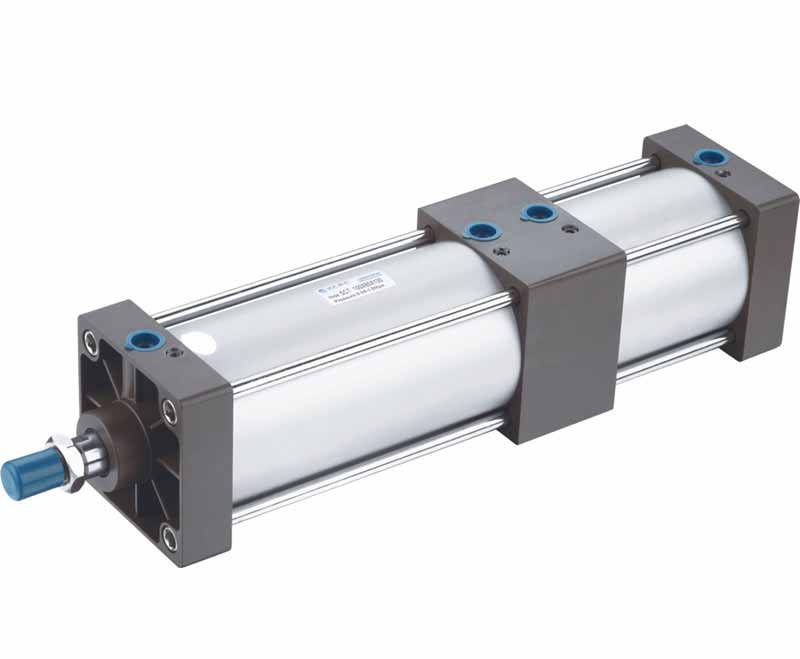

SC/SU Series standard cylinder

SC/SU Series standard cylinder

Motion Pattern	Double Action
Working Medium	Air
Fixed Type	Normal type FA/Type FB/Type CA/Type CB/Type LB/Type TC/Type TC-M/ type
Operating Voltage Range	0.1~0.9kgf/cm2
Buffer Type	Adjustable Buffer

+ Sub-series

DNC Series standard cylinder(ISO6431)

DNG Series Standard cylinder(ISO15552)

SI Series standard cylinder(ISO6431)

MB Series standard cylinder(Japan Standard)

CA1 Series standard cylinder

MA6432 Series mini cylinder

MA Series mini cylinder

MAL Series mini cylinder

CM2 Series mini cylinder

CJ2 Series mini cylinder

SDA Series thin type cylinder

ADVU Series compact cylinder

CQ2 Series compact cylinder

CJP Series needle cylinder

CU Series free installation Cylinder

TN Series double-shaft cylinder

CXS Series double-shaft

STM Series slide cylinder

MGP Series three-shaft cylinder

RSQ Series stopper cylinder

XCK Series Clamping cylinder

MSQ Series rotary cylinder

XHZ2/XHC2 Series pneumatic gripper

XHL2 Series pneumatic gripper

XHT2 Series pneumatic type

CY1 Series rodless cylinder

Special cylinder

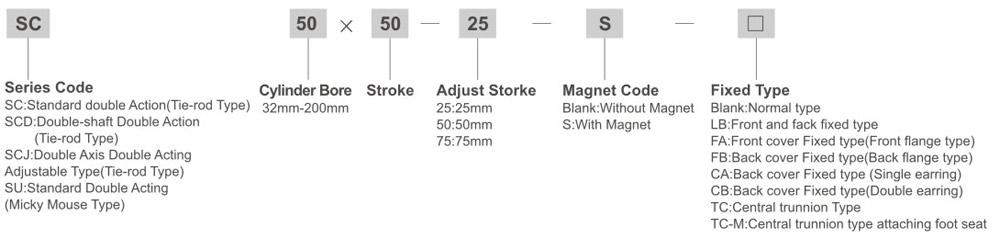

Ordering Code

Specification

Bore(mm)	32	40	50	63	80	100	125	160	200	250	320
Motion Pattern	Double Action
Working Medium	Air
Fixed Type	Normal type FA/Type FB/Type CA/Type CB/Type LB/Type TC/Type TC-M/ type
Operating Voltage Range	0.1~0.9kgf/cm2
Ensured Pressure Resistance	1.35Mpa
Operating Temperature Range	-5~70℃
Operating Speed Range	30~800mm/s
Buffer Type	Adjustable Buffer
Buffer Stroke	24				32					42	33
Port Size	G1/8"	G1/4"		G3/8"		G1/2"		G3/4"		G1"

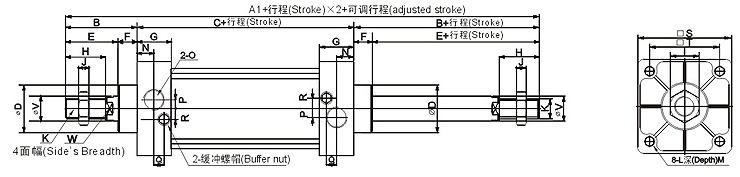

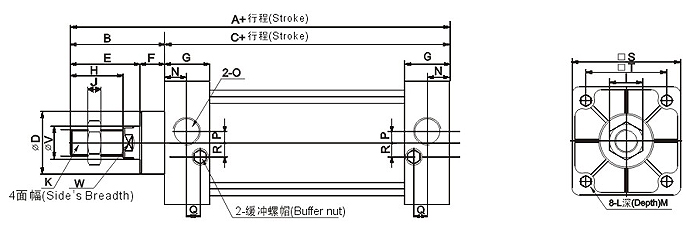

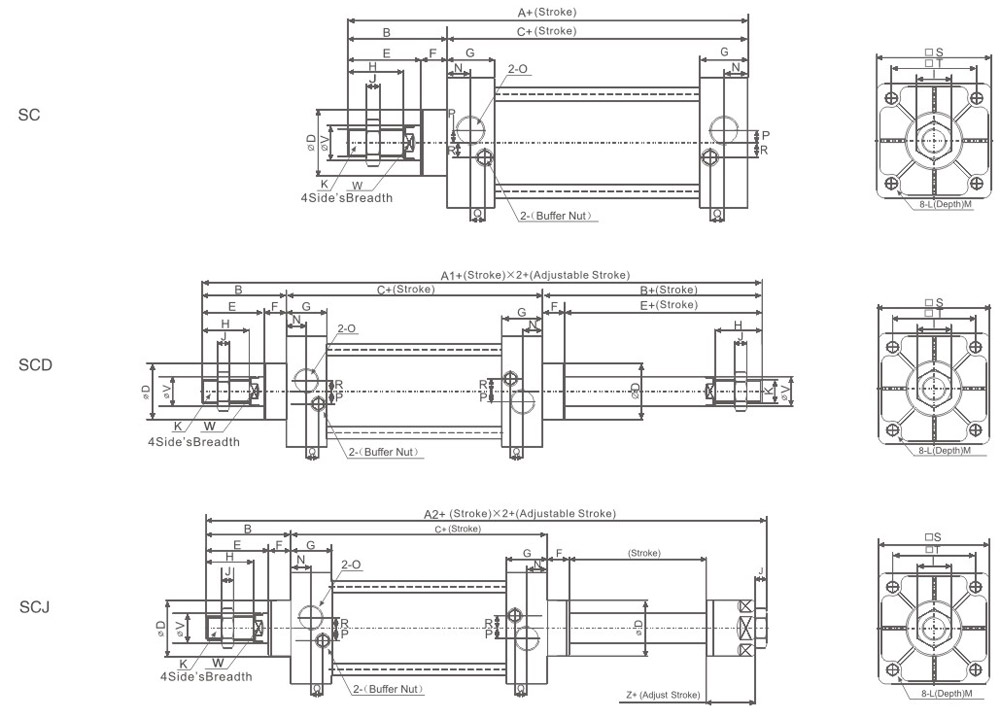

Overall Dimensions

Dimensions sheet

Bore/Symbol	A	B	C	D	E	F	G	H	I	J	K	L	M	S	T	O
250	200	105	67	52	10	90	31	84	90	50	M42×2	M20	Φ30	270	220	G1"
320	218	120	82	52	10	110	31	96	110	63	M48×2	M24	Φ34	340	270	G1"

Bore/Symbol	A	A1	A2	B	C	D	E	F	G	H	I	J	K
32	140	187	182	47	93	26	32	15	27.5	22	17	6	M10×1.25
40	142	191	185	49	93	30	34	15	27.5	24	19	7	M12×1.25
50	150	207	196	57	93	36	42	15	27.5	32	24	8	M16×1.5
63	153	210	199	57	96	36	42	15	27.5	32	24	8	M16×1.5
80	182	257	242	75	108	47	54	21	33	40	30	9	M20×1.5
100	188	263	248	75	108	47	54	21	33	40	30	9	M20×1.5
125	239	330	363	104	136	56	71	32	40	54	40	12	M27×2
160	291	412	450	121	166	62	92	60	50	72	50	14	M36×2
200	272	409	451	132	130	75	117	30	41	72	50	16	M36×2

Bore/Symbol	L	M	N	O	P	Q	R	S	T	V	W	Z
32	M6×1	9.5	13.7	G1/8"	3.5	7.5	7	45	33	12	10	21
40	M6×1	9.5	13.5	G1/4"	6	8.2	9	50	37	16	14	21
50	M6×1	9.5	13.5	G1/4"	8.5	8.2	9	62	47	20	17	23
63	M8×1.25	9.5	13.5	G3/8"	7	8.2	8.5	75	56	20	17	23
80	M10×1.5	11.5	16.5	G3/8"	10	9.5	14	94	70	25	22	29
100	M10×1.5	11.5	16.5	G1/2"	11	9.5	14	112	84	25	22	29
125	M12×1.75	21	16.5	G1/2"	/	/	/	140	110	32	28	33
160	M16×2	25	26	G3/4"	/	/	/	180	140	40	36	38
200	M16×2	25	22.5	G3/4"	/	/	/	220	175	40	36	42

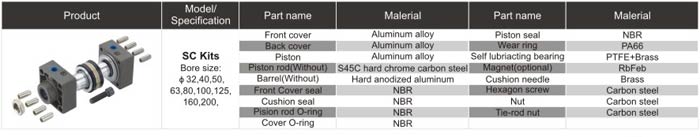

Other Info

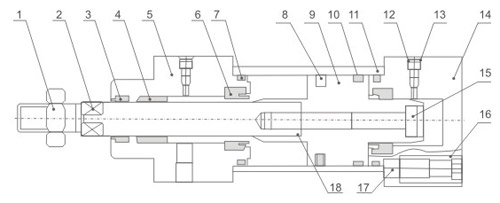

Structure

NO.	Designation
1	Piston Rod Nut
3	Front cover seal ring
5	Front cover
7	Pipe wall O-ring
9	Piston
11	Barrel
13	Damping adjustable screw
15	Hex socket screw
17	Tie rod

NO.	Designation
2	Piston rod
4	Bearing
6	Buffering o-ring
8	Piston O-ring
10	Wear Ring
12	Buffe seal ring
14	Back cover
16	Tie Rod Nut
18	Piston rod o-ring

Stroke

Bore(mm)	Standard Stroke	Max.Stroke	Permissible Stroke
32	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500	1000	2000
40	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800	1200	2000
50	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1200	2000
63	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
80	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
100	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
125	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
160	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
200	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000

Cylinder theory output
