CQ2 Series compact cylinder

CQ2 Series compact cylinder

Working Medium	Air
Ensured Pressure Resistance	15.3kgf/cm2(1.5Mpa)
Max.pressure	10.2kgf/cm2(1.0Mpa)
Environment and fluid temp	5~+60℃
Buffering	无/NO
Margin of Stroke Error(mm)	+1.0

+ Sub-series

DNC Series standard cylinder(ISO6431)

DNG Series Standard cylinder(ISO15552)

SI Series standard cylinder(ISO6431)

SC/SU Series standard cylinder

MB Series standard cylinder(Japan Standard)

CA1 Series standard cylinder

MA6432 Series mini cylinder

MA Series mini cylinder

MAL Series mini cylinder

CM2 Series mini cylinder

CJ2 Series mini cylinder

SDA Series thin type cylinder

ADVU Series compact cylinder

CJP Series needle cylinder

CU Series free installation Cylinder

TN Series double-shaft cylinder

CXS Series double-shaft

STM Series slide cylinder

MGP Series three-shaft cylinder

RSQ Series stopper cylinder

XCK Series Clamping cylinder

MSQ Series rotary cylinder

XHZ2/XHC2 Series pneumatic gripper

XHL2 Series pneumatic gripper

XHT2 Series pneumatic type

CY1 Series rodless cylinder

Special cylinder

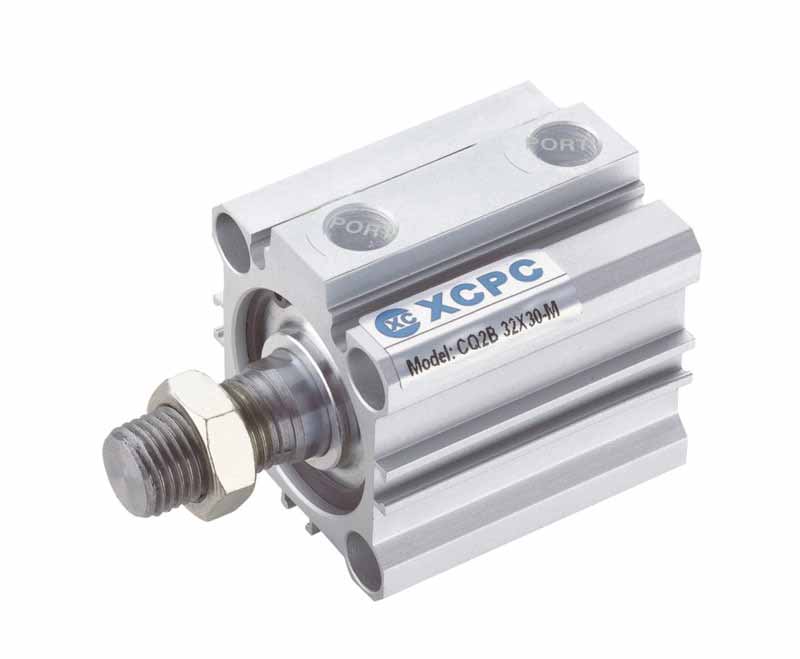

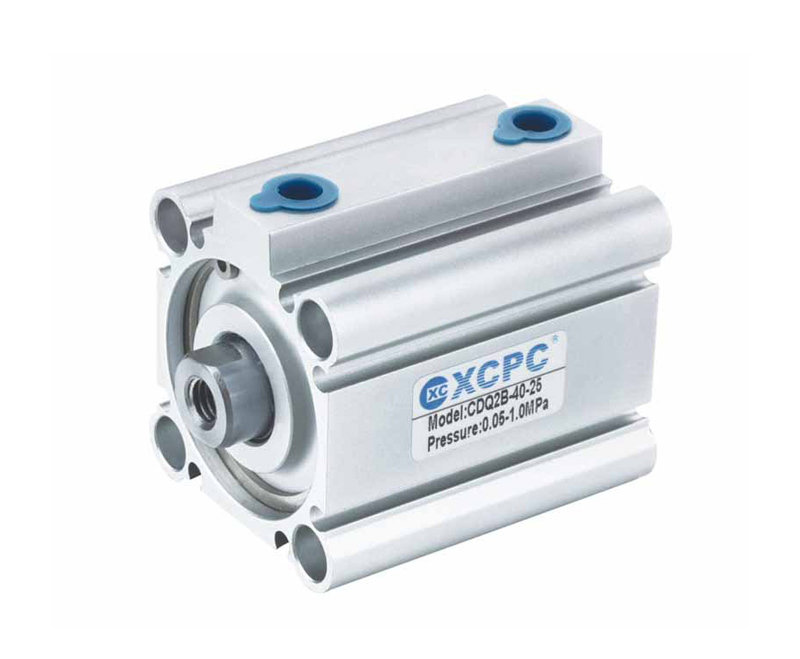

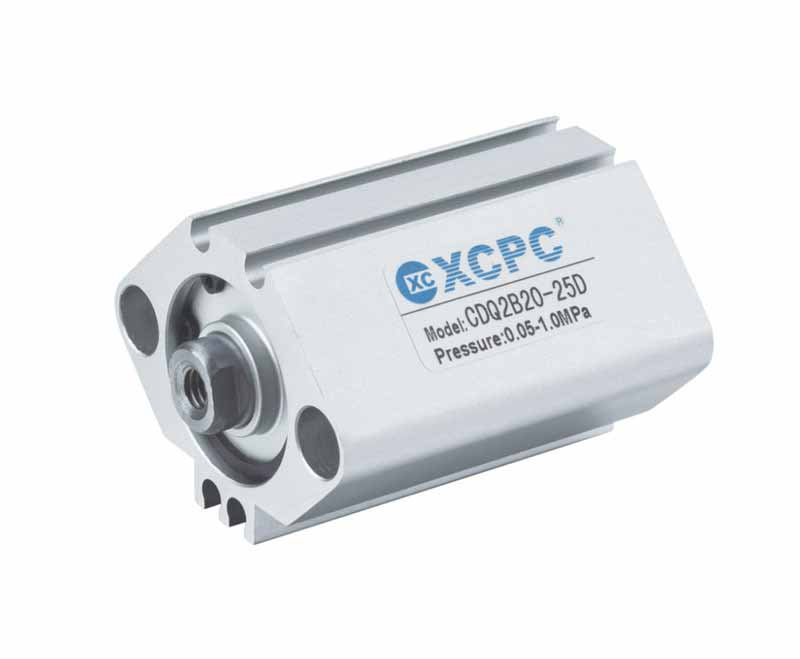

CQ2B-32X30-M

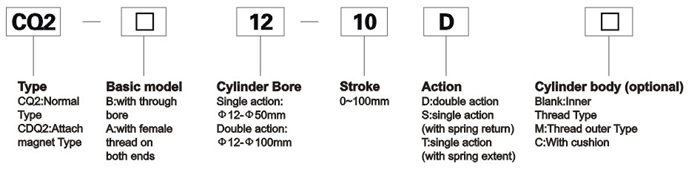

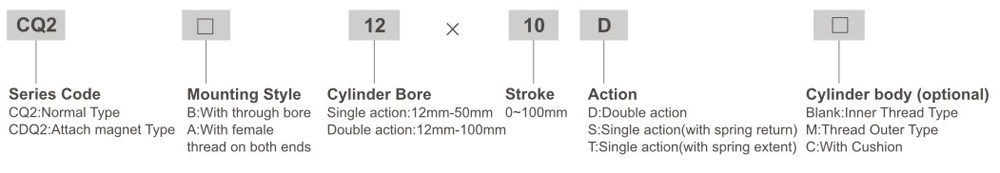

Ordering Code

Specification

Bore(mm)	12	16	20	25	32	40	50	63	80	100
Working Medium	Air
Motion Pattern	Double action/Single Action Extrusion type/Single Action Drawing-in Type
Ensured Pressure Resistance	15.3kgf/cm2(1.5Mpa)
Max.pressure	10.2kgf/cm2(1.0Mpa)
Environment and fluid temp	5~+60℃
Thread Type	Inner Thread(Standard)/Outer Thread(Optional)
Buffering	无/NO
Margin of Stroke Error(mm)	+1.0
Installation	Through Hole (Standard)，Inner size on the two sides(Optional)
Port size	M5×0.8				G1/8"		G1/4"		G3/8"

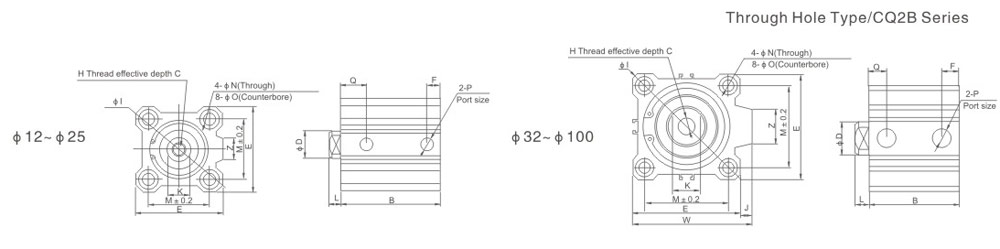

Overall Dimensions

CQ2B 12-25

CQ2B 32-100

CDQ2B 12-25

CDQ2B 32-100

Dimensions sheet-CQ2B(Double Action)

Model	Stroke range (mm)	B	ΦD	E	F	H	C	ΦI	J	K	L	M	ΦN	ΦO	P	Q	W	Z
CQ2B12-□D	5~30	17+st	6	25	5	M3×0.5	6	32	-	5	3.5	15.5	3.5	6.5/depth 3.5	M5×0.8	7.5	-	-
CQ2B16-□D	5~30	18.5+st	8	29	5.5	M4×0.7	8	38	-	6	3.5	20	3.5	6.5/depth 3.5	M5×0.8	8	-	10
CQ2B20-□D	5~50	19.5+st	10	36	5.5	M5×0.8	7	47	-	8	4.5	25.5	5.5	9/depth 7	M5×0.8	9	-	10
CQ2B25-□D	5~50	22.5+st	12	40	5.5	M6×1.0	12	52	-	10	5	28	5.5	9/depth 7	M5×0.8	11	-	10
CQ2B32-□D	5	23+st	16	45	5.5	M8×1.25	13	60	4.5	14	7	34	5.5	9/depth 7	M5×0.8	11.5	49.5	18
CQ2B32-□D	10~50	23+st	16	45	7.5	M8×1.25	13	60	4.5	14	7	34	5.5	9/depth 7	1/8	11.5	49.5	18
CQ2B40-□D	5~50	29.5+st	16	52	8	M8×1.25	13	69	5	14	7	40	5.5	9/depth 7	1/8	11	57	18
CQ2B50-□D	10~50	30.5+st	20	64	10.5	M10×1.5	15	86	7	17	8	50	6.6	11/depth 8	1/4	10.5	71	22
CQ2B63-□D	10~50	36+st	20	77	10.5	M10×1.5	15	103	7	17	8	60	9	14/depth 10.5	1/4	15	84	22
CQ2B80-□D	10~50	43.5+st	25	98	12.5	M16×2.0	21	132	6	22	10	77	11	17.5/depth 13.5	3/8	16	104	26
CQ2B100-□D	10~50	53+st	30	117	13	M20×2.5	27	156	6.5	27	12	94	11	17.5/depth 13.5	3/8	23	123.5	26

Dimensions sheet(Single Action)

Model	B			ΦD	E	F		H	C	ΦI	J	K	L	M	ΦN	ΦO	P			Q		W	Z
Model	5st	10st	20st	ΦD	E	5st	10st	H	C	ΦI	J	K	L	M	ΦN	ΦO	5st	10st	20st	5st 1	0st	W	Z
CQ2B12-□S	22	27	-	6	25	5	5	M3×0.5	6	32	-	5	3.5	15.5	3.5	6.5/depth 3.5	M5×0.8		-	7.5	7.5	-	-
CQ2B16-□S	23.5	28.5	-	8	29	5.5	5.5	M4×0.7	8	38	-	6	3.5	20	3.5	6.5/depth 3.5	M5×0.8		-	8	8	-	10
CQ2B20-□S	24.5	29.5	-	10	36	5.5	5.5	M5×0.8	7	47	-	8	4.5	25.5	5.5	9/depth 7	M5×0.8		-	9	9	-	10
CQ2B25-□S	27.5	32.5	-	12	40	5.5	5.5	M6×1.0	12	52	-	10	5	28	5.5	9/depth 7	M5×0.8		-	11	11	-	10
CQ2B32-□S	28	33	-	16	45	5.5	7.5	M8×1.25	13	60	4.5	14	7	34	5.5	9/depth 7	M5×0.8	1/8	-	11.5	11.5	49.5	18
CQ2B40-□S	34.5	39.5	-	16	52	8	8	M8×1.25	13	69	5	14	7	40	5.5	9/depth 7	1/8		-	11	11	57	18
CQ2B50-□S	-	40.5	50.5	20	64	10.5	10.5	M10×1.5	15	86	7	17	8	50	6.6	11/depth 8	-	1/4		10.5	10.5	71	22

Dimensions sheet-CDQ2B(Double Action)

Model	Stroke range (mm)	A	B	ΦD	E	F	H	C	ΦI	J	K	L	M	ΦN	ΦO	P	Q	S	U	V	Z
CDQ2B12-□D	5~30	31.5	28	6	25	5	M3×0.5	6	32	-	5	3.5	15.5	3.5	6.5/depth 3.5	M5×0.8	11	35.5	19.5	25	-
CDQ2B16-□D	5~30	34	30.5	8	29	5.5	M4×0.7	8	38	-	6	3.5	20	3.5	6.5/depth 3.5	M5×0.8	10	41.5	22.5	29	-
CDQ2B20-□D	5~50	36	31.5	10	36	5.5	M5×0.8	7	47	-	8	4.5	25.5	5.5	9/depth 7	M5×0.8	10.5	48	24.5	36	-
CDQ2B25-□D	5~50	37.5	32.5	12	40	5.5	M6×1.0	12	52	-	10	5	28	5.5	9/depth 7	M5×0.8	11	53.5	27.5	40	-
CDQ2B32-□D	5~50	40	33	16	45	5.5	M8×1.25	13	60	4.5	14	7	34	5.5	9/depth 7	M5×0.8	10.5	58.5	31.5	-	18
CDQ2B40-□D	5~50	46.5	39.5	16	52	8	M8×1.25	13	69	5	14	7	40	5.5	9/depth 7	1/8	15	66	35	-	18
CDQ2B50-□D	10~50	48.5	40.5	20	64	10.5	M10×1.5	15	86	7	17	8	50	6.6	11/depth 8	1/4	10.5	80	41	-	22
CDQ2B63-□D	10~50	54	46	20	77	10.5	M10×1.5	15	103	7	17	8	60	9	14/depth 10.5	1/4	15	93	47.5	-	22
CDQ2B80-□D	10~50	63.5	53.5	25	98	12.5	M16×2.0	21	132	6	22	10	77	11	17.5/depth 13.5	3/8	16	112.5	57.5	-	26
CDQ2B100-□D	10~50	75	63	30	117	13	M20×2.5	27	156	6.5	27	12	94	11	17.5/depth 13.5	3/8	23	132.5	67.5	-	26

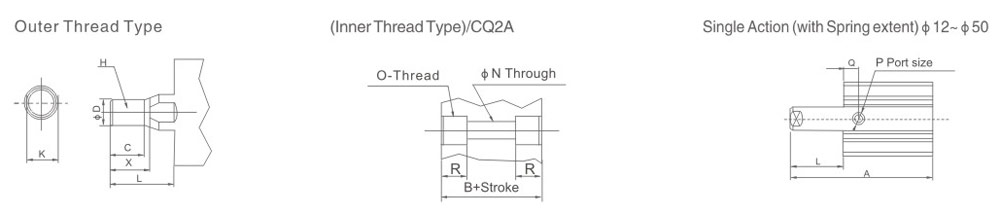

Other Info

Inner-Thread-Type

Inner-Thread-Type CQ2A

Single-Action(with-Spring-extent)

Inner-Thread-Type-CDQ2A

Thread-outer-Type-CDQ2A

Long Stroke

Model	Stroke(mm)	B	F	P	Q
32	75,100	33	7.5	1/8	10.5
40	75,100	39.5	8	1/8	11
50	75,100	40.5	10.5	1/4	10.5
63	75,100	46	10.5	1/4	15
80	75,100	53.5	12.5	3/8	16
100	75,100	63	13	3/8	23

Thread-outer-Type

Bore(mm)	C	X	ΦD	H	L	K
Bore(mm)	C	X	ΦD	H	L	K
12	9	10.5	6	M5×0.8	14	5
16	10	12	8	M6×1.0	15.5	6
20	12	14	10	M8×1.25	18.5	8
25	15	17.5	12	M10×1.25	22.5	10
32	20.5	23.5	16	M14×1.5	28.5	14
40	20.5	23.5	16	M14×1.5	28.5	14
50	26	28.5	20	M18×1.5	33.5	17
63	26	28.5	20	M18×1.5	33.5	17
80	32.5	35.5	25	M22×1.5	43.5	22
100	32.5	35.5	30	M26×1.5	43.5	27

Inner-Thread-Type

Bore (mm)	O	R
Bore (mm)	O	R
12	M4×0.7	7
16	M4×0.7	7
20	M6×1.0	10
25	M6×1.0	10
32	M6×1.0	10
40	M6×1.0	10
50	M8×1.25	14
63	M10×1.5	18
80	M12×1.75	22
100	M12×1.75	22

Single-Action(with-Spring-extent)

Bore (mm)	A			L
Bore (mm)	5st	10st	20st	5st	10st	20st
12	30.5	40.5	-	8.5	13.5	-
16	32	42	-	8.5	13.5	-
20	34	44	-	9.5	14.5	-
25	37.5	47.5	-	10	15	-
32	40	50	-	12	17	-
40	46.5	56.5	-	12	17	-
50	-	58.5	78.5	-	18	28

Model	Stroke(mm)	A	B	F	P	Q
32	75,100	40	33	7.5	1/8	10.5
40	75,100	46.5	39.5	8	1/8	11
50	75,100	48.5	40.5	10.5	1/4	10.5
63	75,100	54	46	10.5	1/4	15
80	75,100	63.5	53.5	12.5	3/8	16
100	75,100	75	63	13	3/8	23

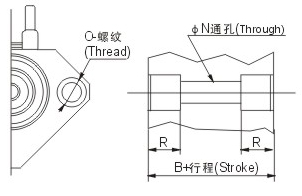

Inner Thread Type CDQ2A

Bore (mm)	O	R
12	M4×0.7	7
16	M4×0.7	7
20	M6×1.0	10
25	M6×1.0	10
32	M6×1.0	10
40	M6×1.0	10
50	M8×1.25	14
63	M10×1.5	18
80	M12×1.75	22
100	M12×1.75	22

Thread-outer-Type-CDQ2A

Bore (mm)	C	X	ΦD	H	L	K
12	9	10.5	6	M5×0.8	14	5
16	10	12	8	M6×1.0	15.5	6
20	12	14	10	M8×1.25	18.5	8
25	15	17.5	12	M10×1.25	22.5	10
32	20.5	23.5	16	M14×1.5	28.5	14
40	20.5	23.5	16	M14×1.5	28.5	14
50	26	28.5	20	M18×1.5	33.5	17
63	26	28.5	20	M18×1.5	33.5	17
80	32.5	35.5	25	M22×1.5	43.5	22
100	32.5	35.5	30	M26×1.5	43.5	27
