TN Series double-shaft cylinder

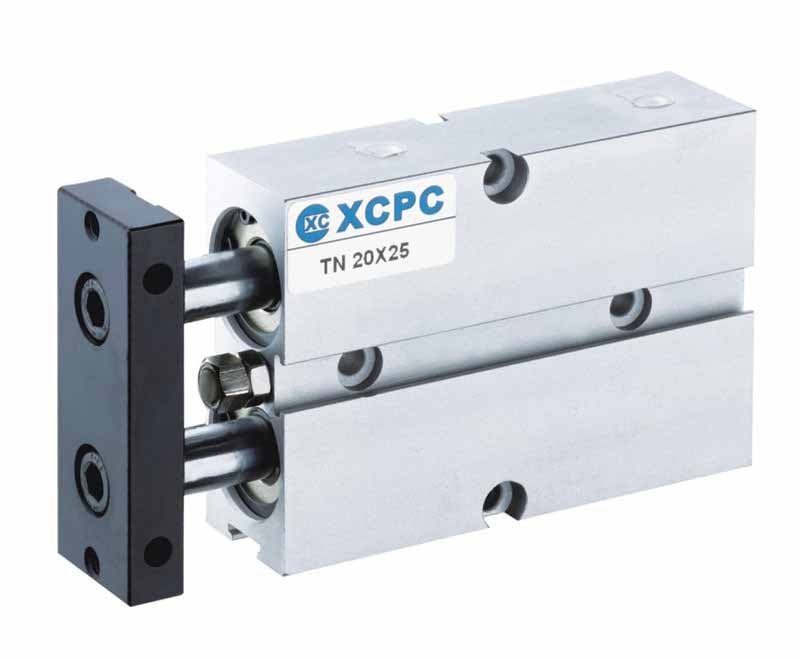

TN Series double-shaft cylinder

Motion Pattern	Double action
Working Medium	Air
Operating Voltage Range	1~9kgf/cm2
Ensured Pressure Resistance	10.5kgf/cm2
Operating Speed Range	100~500mm/s
Adjustable Stroke	-10~0mm

+ Sub-series

DNC Series standard cylinder(ISO6431)

DNG Series Standard cylinder(ISO15552)

SI Series standard cylinder(ISO6431)

SC/SU Series standard cylinder

MB Series standard cylinder(Japan Standard)

CA1 Series standard cylinder

MA6432 Series mini cylinder

MA Series mini cylinder

MAL Series mini cylinder

CM2 Series mini cylinder

CJ2 Series mini cylinder

SDA Series thin type cylinder

ADVU Series compact cylinder

CQ2 Series compact cylinder

CJP Series needle cylinder

CU Series free installation Cylinder

CXS Series double-shaft

STM Series slide cylinder

MGP Series three-shaft cylinder

RSQ Series stopper cylinder

XCK Series Clamping cylinder

MSQ Series rotary cylinder

XHZ2/XHC2 Series pneumatic gripper

XHL2 Series pneumatic gripper

XHT2 Series pneumatic type

CY1 Series rodless cylinder

Special cylinder

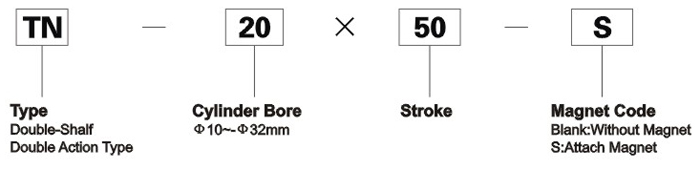

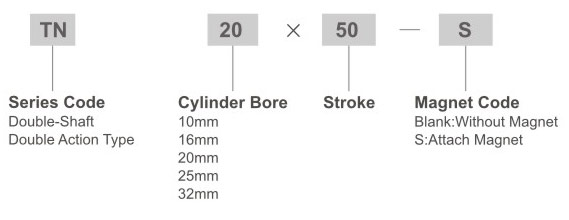

Ordering Code

Specification

Bore(mm)	10	16	20	25	32
Motion Pattern	Double action
Working Medium	Air
Operating Voltage Range	1~9kgf/cm2
Ensured Pressure Resistance	10.5kgf/cm2
Operating Temperature Range	-5~+70℃
Operating Speed Range	100~500mm/s
Adjustable Stroke	-10~0mm
Cushion Type	Adjustable Cushion
Non-rotating Precision	0.4℃	0.3℃
Port Size	M5×0.8				G1/8"

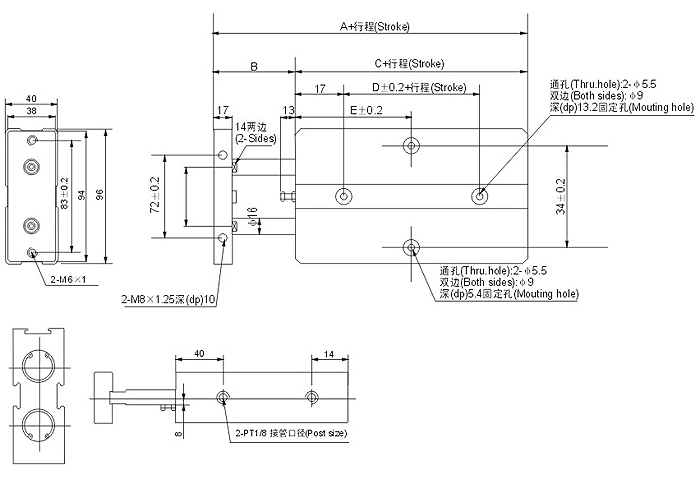

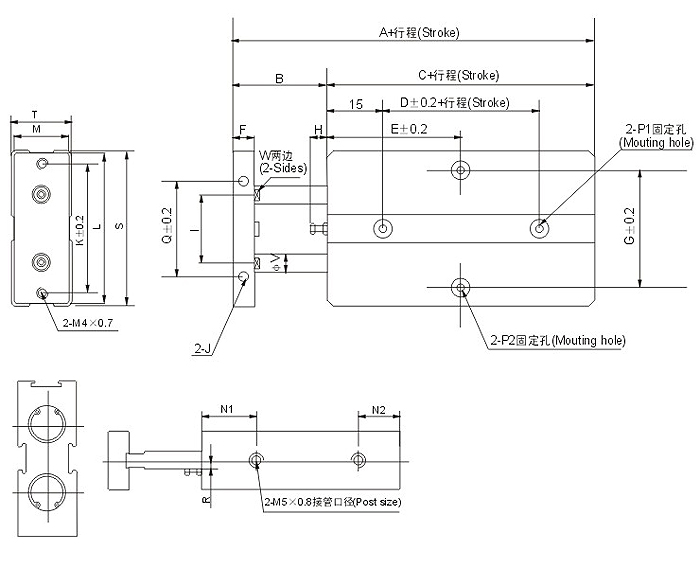

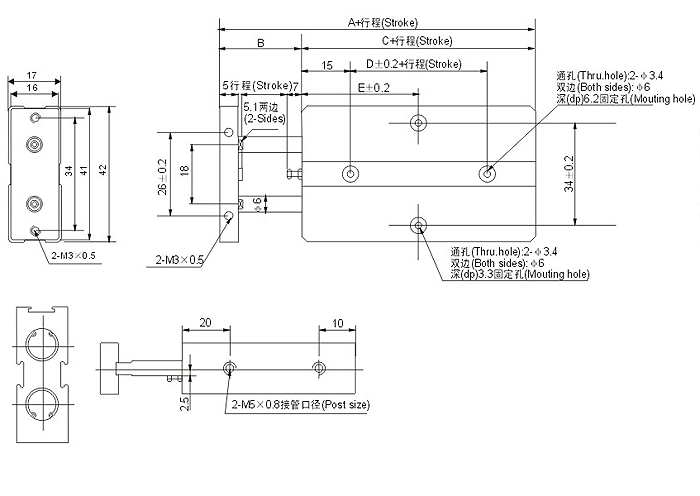

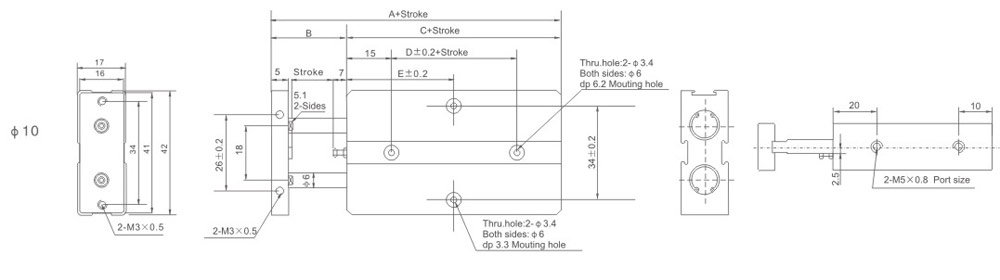

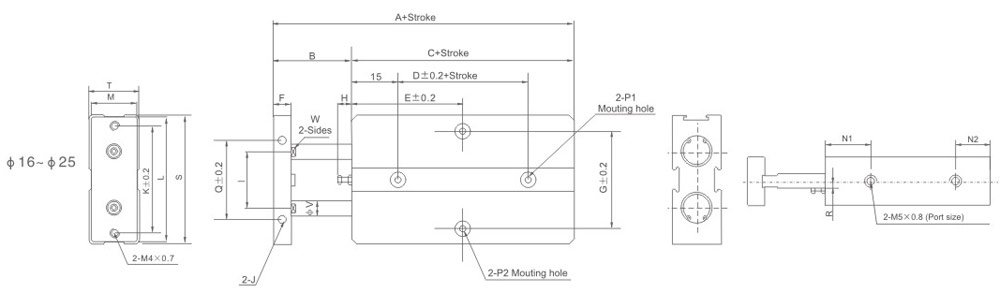

Overall Dimensions

10 TN

16-25 TN

32 TN

Dimensions sheet-10TN

Bore size	A	B	C	D	E
Item	A	B	C	D	10	20	30	40	50	60	70
10	63	12	51	10	30	30	35	40	45	50	55

Dimensions sheet-16-25TN

Bore size	A	B	C	D	E												F	G	H	I
Item	A	B	C	D	10	20	30	40	50	60	70	80	90	100	125	150	F	G	H	I
16	68	15	53	20	30	35	40	45	50	55	60	65	70	75	87.5	100	8	47	6	24
20	78	20	58	20	35	35	40	45	50	55	60	65	70	75	87.5	100	10	55	9	28
25	81	19	62	30	40	40	45	50	55	60	65	70	75	80	92.5	105	10	66	8	34

Bore size/Item	J	K	L	M	N1	N2	P1	P2	Q	R	S	T	V	W
16	M4×0.7dp 5	47	53	20	22	11	(Both sides):φ7.5(dp) 7.2mm (Thru.hole): φ4.5	(Both sides):φ8(dp) 4.4mm (Thru.hole): φ4.5	34	3	54	21	8	6.1
20	M4×0.7/dp 5	55	61	24	25	12	(Both sides):φ7.5(dp) 7.2mm (Thru.hole): φ4.5	(Both sides):φ8(dp) 4.4mm (Thru.hole): φ4.5	44	3.5	62	25	10	8.1
25	M4×0.7/dp 6	66	72	29	27	12	(Both sides):φ7.5(dp) 7.2mm (Thru.hole): φ4.5	(Both sides):φ8(dp) 4.4mm (Thru.hole): φ4.5	56	7	73	30	12	10.2

Dimensions sheet-32TN

Bore size	A	B	C	D	E
Item	A	B	C	D	10	20	30	40	50	60	70	80	90	100	125	150
32	108	30	78	35	45	50	55	60	65	70	75	80	85	90	102.5	115
