Cylinder diameter

32

40

50

63

80

100

Working Medium

Air

Action type

Double acting

Proof pressure

15.3kgf/cm2(1.5Mpa)

Max.pressure

10.2kgf/cm2(1.0Mpa)

Min.pressure

0.5kgf/cm2(0.05Mpa)

Environment and fluid temp

-10~+60℃

Piston veocity

50~1000mm/s

Buffering

Air buffering

Stroke tolerance

~0~250+10 , 251~1000+14 , 1001~1500+18

Rc(PT)Joint size

G1/8"

G1/4"

G3/8"

G1/2"

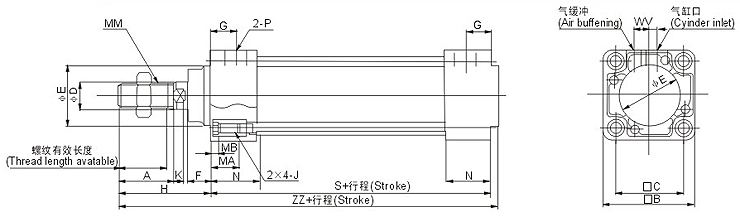

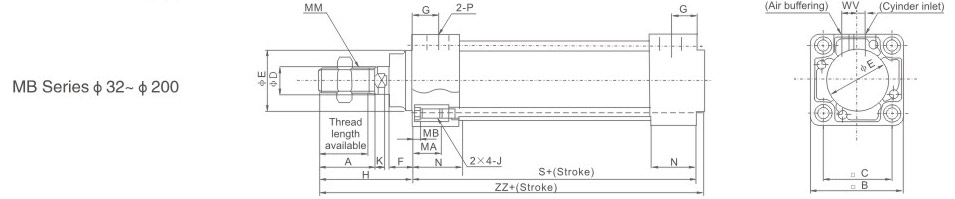

Diameter

Stroke range

Thread length available

A

□B

□C

φD

φE

F

G

MA

MB

J

K

MM

N

P

S

V

W

H

ZZ

32

~500

19.5

22

46

32.5

12

30

13

13

16

4

M6×1.0

6

M10×1.25

27

1/8

84

4

6.5

47

135

40

~500

27

30

52

38

16

35

13

14

16

4

M6×1.0

6

M14×1.5

27

1/4

84

4

9

51

139

50

~600

32

35

65

46.5

20

40

14

15.5

16

5

M8×1.25

7

M18×1.5

31.5

1/4

94

5

10.5

58

156

63

~600

32

35

75

56.5

20

45

14

16.5

16

5

M8×1.25

7

M18×1.5

31.5

3/8

94

9

12

58

156

80

~750

37

40

95

72

25

45

20

19

16

5

M10×1.5

10

M22×1.5

38

3/8

114

11.5

14

72

190

100

~750

37

40

114

89

30

55

20

19

16

5

M10×1.5

10

M26×1.5

38

1/2

114

17

15

72

190

Bore(mm)

Standard Stroke

32

25,50,75,100,125,150,175,200, 250,300,350,400,450,500

40

25,50,75,100,125,150,175,200, 250,300,350,400,450,500

50

25,50,75,100,125,150,175,200, 250,300,350,400,450,500,600

63

25,50,75,100,125,150,175,200, 250,300,350,400,450,500,600

80

25,50,75,100,125,150,175,200, 250,300,350,400,450,500,600,700,750

100

25,50,75,100,125,150,175,200, 250,300,350,400,450,500,600,700,750
